Installation

BLOWER MOTOR - LHD





1. Install the blower motor and squirrel cage as an assembly.

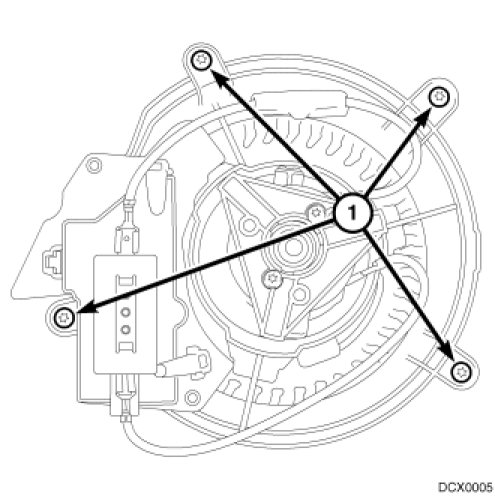

2. Install the screws (1) attaching the blower motor to the heater housing.
3. Swing the blower motor door up.

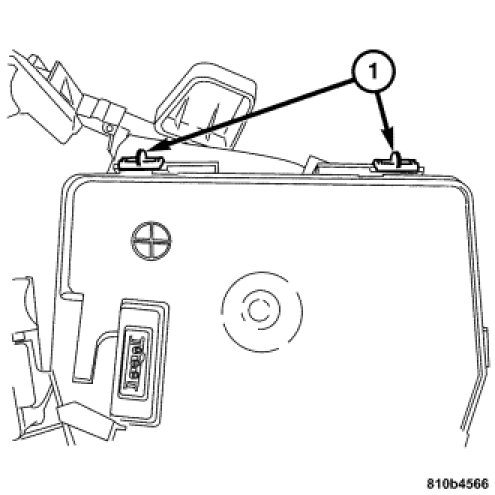

4. Install the blower motor door catch mounts (1) by sliding them over to the detents.

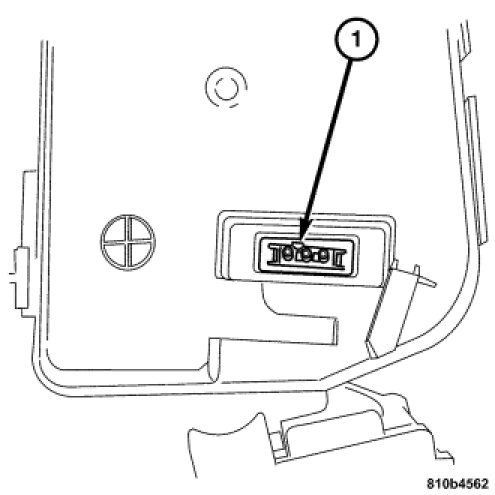

5. Connect the blower motor electrical connector (1).

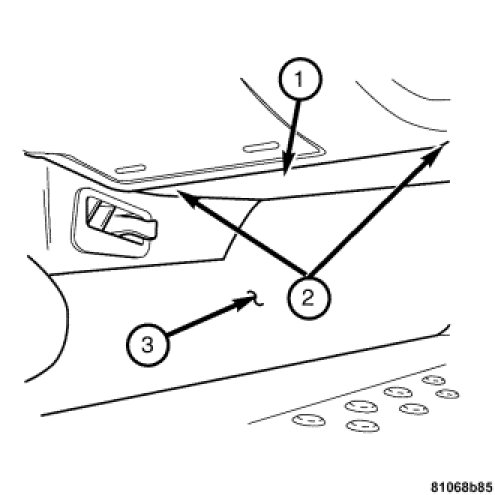

6. Install the lower instrument panel cover (2).Instrument Panel - Installation.
