Installation







INSTALLATION

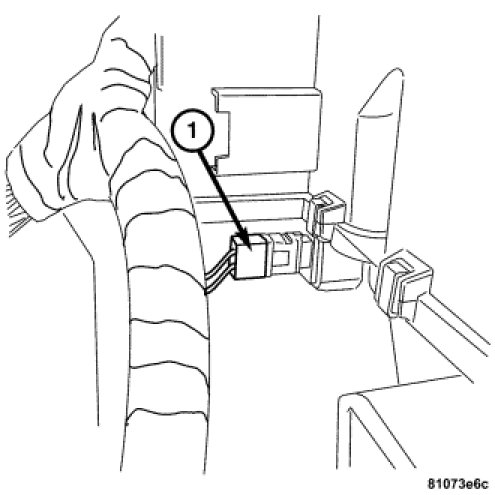

1. Connect the evaporator temperature sensor harness to the evaporator temperature sensor (1).
2. Push the evaporator temperature sensor (1) into the A/C heater case.
3. Install the center console. Center Console - Installation.
