Installation

INSTALLATION

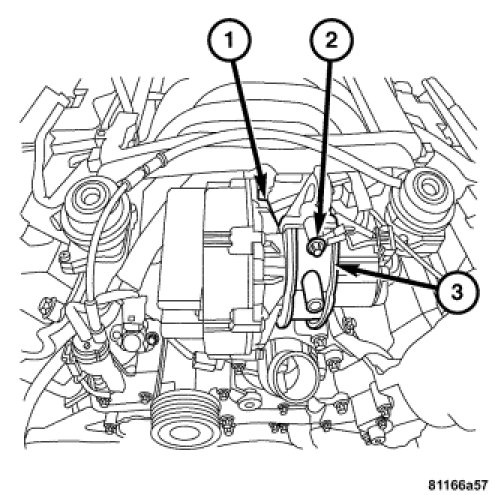

1. Position the air pump (1) into the air pump retaining bracket (3).
2. Install the air pump retaining bolt (2). Tighten bolt to 20 Nm (177 in. lbs.).

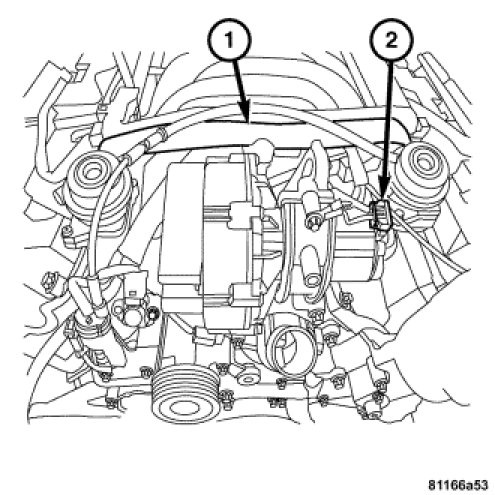

3. Connect the air pump harness connector (2).
4. Connect the air pump switchover tube (1).
5. Install the air cleaner housing.
6. Connect the negative battery cable.
