Removal

REMOVAL





1. Disconnect the negative battery cable.
2. Remove the air cleaner housing.

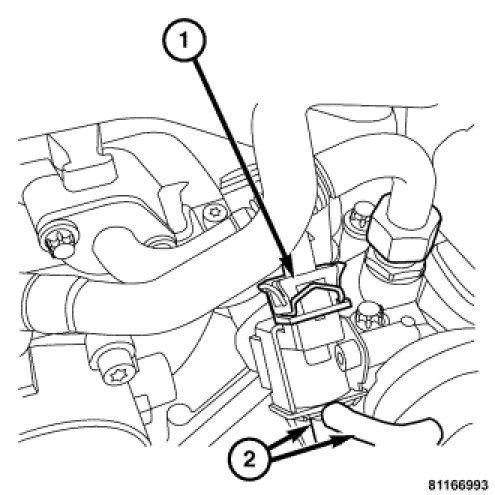

3. Disconnect the solenoid harness connector (1).
4. Disconnect the solenoid vacuum lines (2).

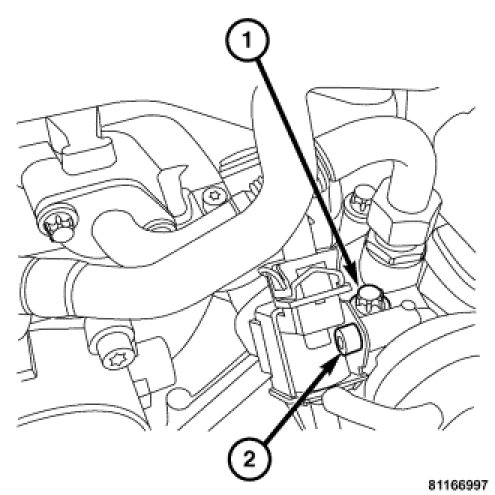

5. Remove the solenoid to valve mounting bolt (2).
6. Remove the valve to cylinder head mounting bolt (1).
7. Clean the gasket surfaces. Discard the old gasket.
8. Clean the EGR passages as necessary.
