Removal







REMOVAL

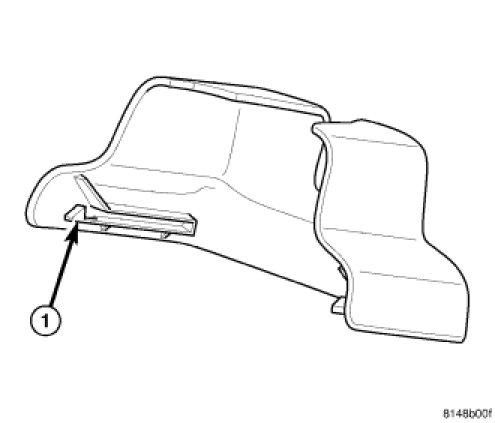

1. Press the locking tabs (1) down on each side of the latch cover.

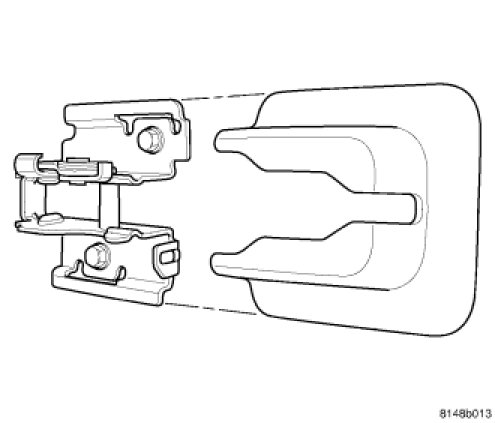

2. Slide the latch cover forward to remove it from the latch.
3. Remove latch cover from vehicle.
