Installation

INSTALLATION

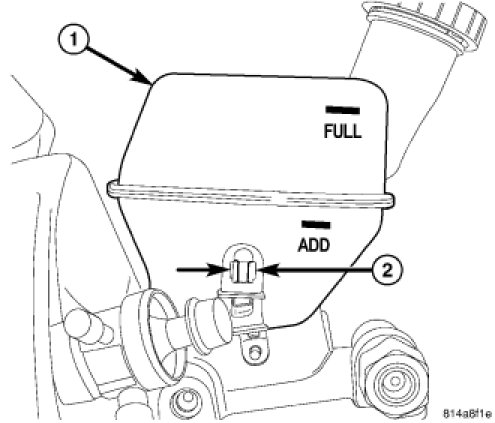

1. Align the brake fluid level switch with its mounting hole on the left side of the master cylinder brake fluid reservoir. Push the switch into the fluid reservoir until the switch retaining tabs (2) are expanded on the other side of the reservoir (1), locking it in place.

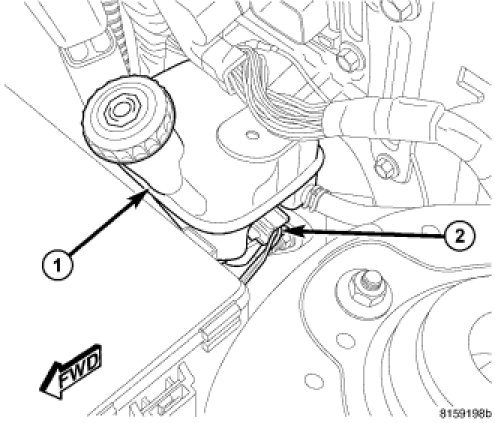

2. Connect the vehicle wiring harness connector (2) to the switch.
