Coolant Temperature Sensor/Switch (For Computer): Locations

Component ID: 315
Component : SENSOR-ENGINE COOLANT TEMPERATURE

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE
Color :
# of pins : 2

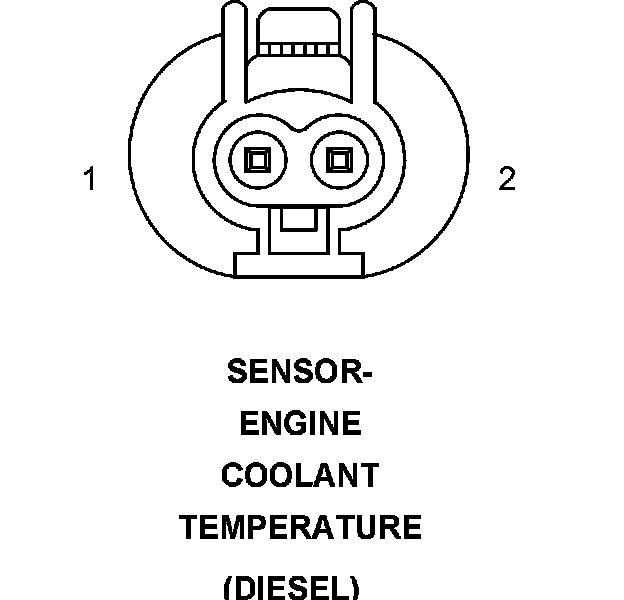

Qualifier : (DIESEL)




Pin Circuit Description
1 K2 20LG/RD ECT SIGNAL
2 K900 20BR/RD SENSOR GROUND

Component Location - 26






Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE
Color : BLACK
# of pins : 2

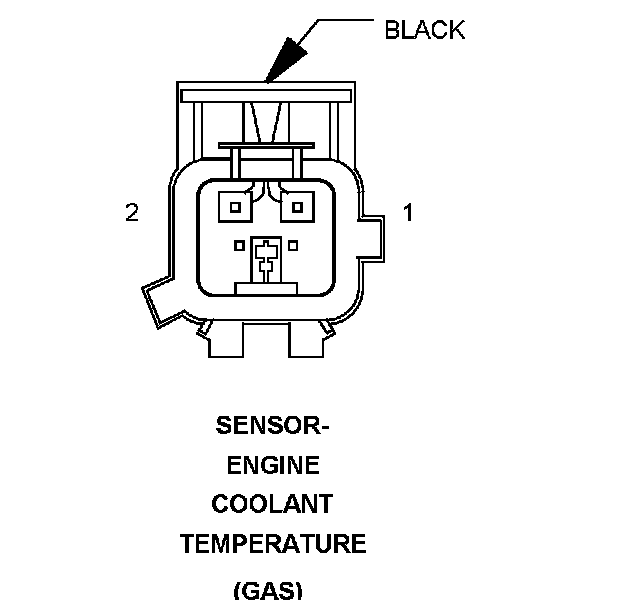

Qualifier : (GAS)




Pin Circuit Description
1 K915 20BK/LB ECT GROUND
Pin Circuit Description
1 K900 20BK/LB SENSOR GROUND
2 K2 20TN/BK ECT SIGNAL

Component Location - 26
