PDM-3F-Lin Window Regulated Module Not Calibrated: Notes

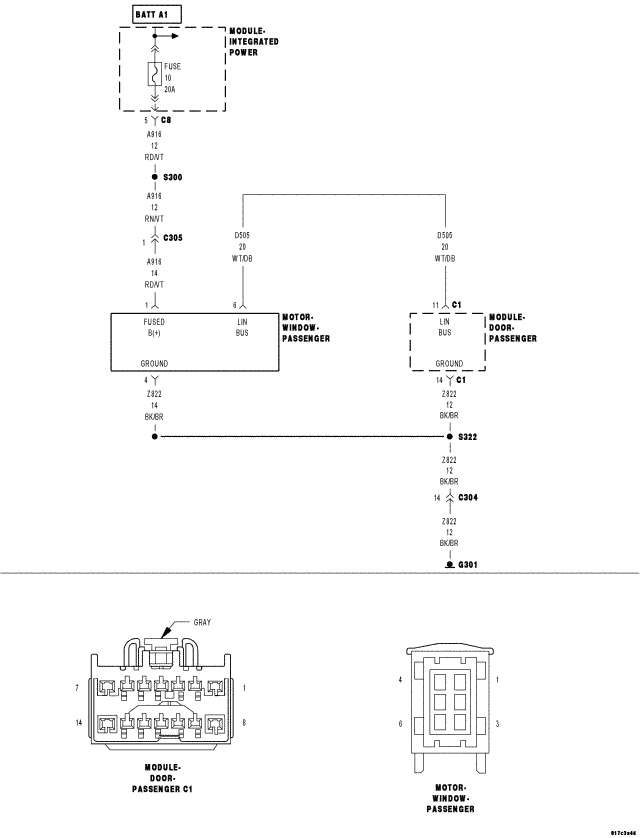

Fig 1: Passenger Window And Door Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

1. When Monitored:

   During a window operation command.

2. Set Condition:

   After the vehicle has accumulated ten miles, if the LIN module (on the motor) is not calibrated, this code will set. This code may also set if the battery has been disconnected or the power to the LIN module has been lost for more than one second.
