Ignition Control-Electrical Diagnostics
>>
DTC Troubleshooting
>>
B2108-Ignition Switch Sense Input Circuit Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

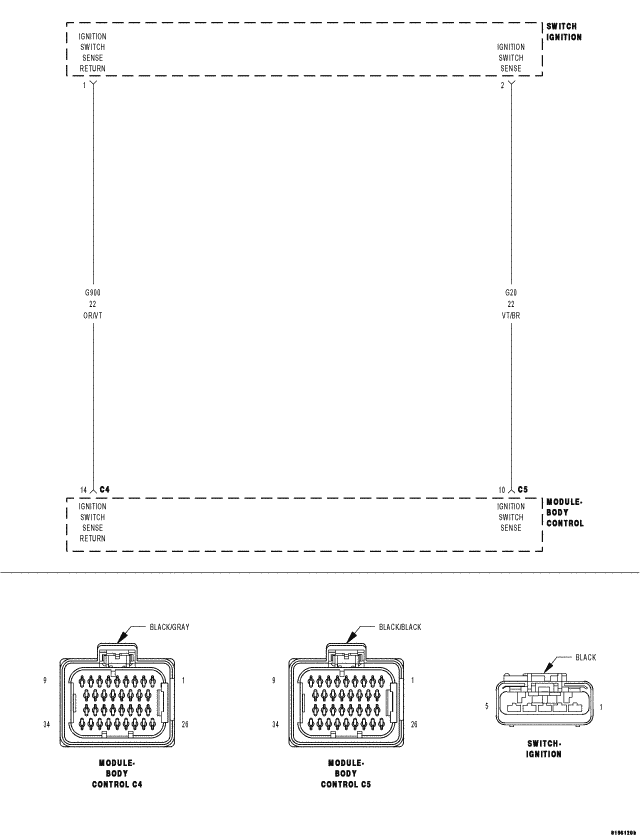

Fig 1: Ignition Switch Sense Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
