Chrysler
>>
2008
>>
Pacifica Touring, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTCS P0643 To P1628
>>
P0685-ASD-Main Control Circuit
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

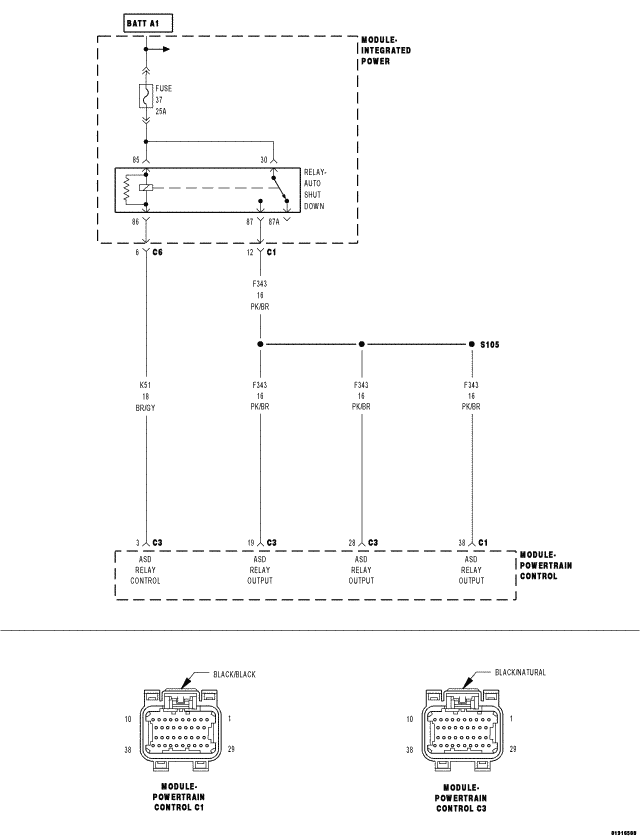

Fig 1: Auto Shut Down Control Circuit Schematic
Courtesy of CHRYSLER LLC
