Installation

INSTALLATION

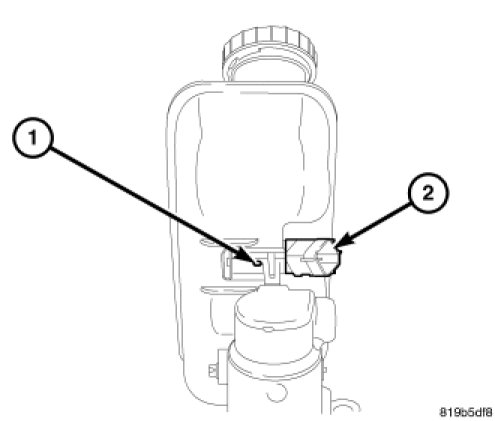

1. Insert brake fluid level switch (2) into left side of reservoir. Be to push switch in until retaining tab (1) locks into place in reservoir.

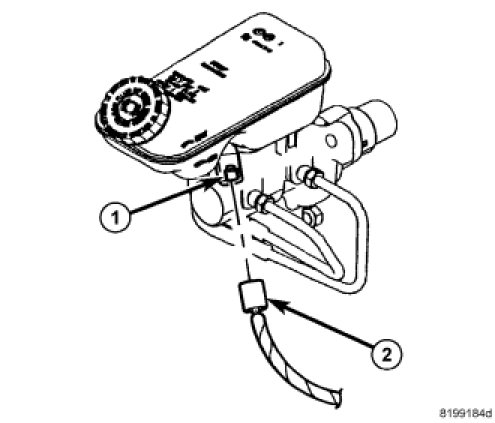

2. Connect wiring harness connector (2) to brake fluid level switch (1) mounted in brake fluid reservoir.
3. Place coolant recovery bottle in its normal mounted position. Install upper and tighten all nuts fastening it in place. Coolant Recovery Container - Installation
