Inspection

INSPECTION





Belt replacement under any or all of the following conditions is required:

- Excessive wear
- Frayed cords
- Severe glazing

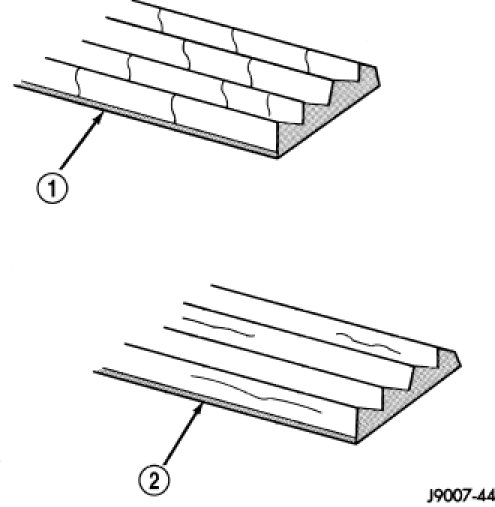

Poly-V Belt system may develop minor cracks across the ribbed side (1) (due to reverse bending). These minor cracks are considered normal and acceptable. Parallel cracks are not (2).

NOTE: Do not use any type of belt dressing or restorer on Poly-V Belts.
