Installation







INSTALLATION

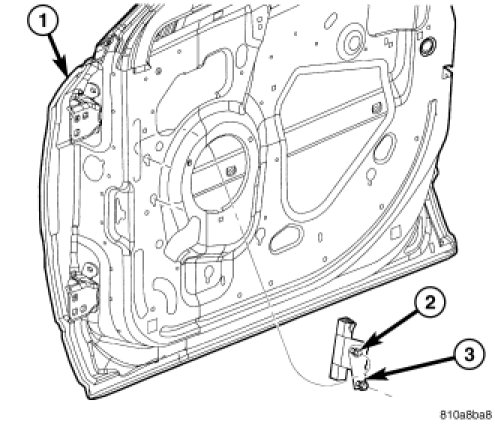

1. Place door glass run lower channel through front access hole into key hole slots.
2. Tighten screws attaching door glass run lower channel to inner door panel to 6 Nm (55 in. lbs.) torque.
3. Place watershield into position. Installation.
4. Install door trim panel. Front Door Trim Panel - Installation.
