Installation

INSTALLATION





NOTE: Make sure to use a new grommet when installing a new switch, or even reinstalling the old switch back into the reservoir.

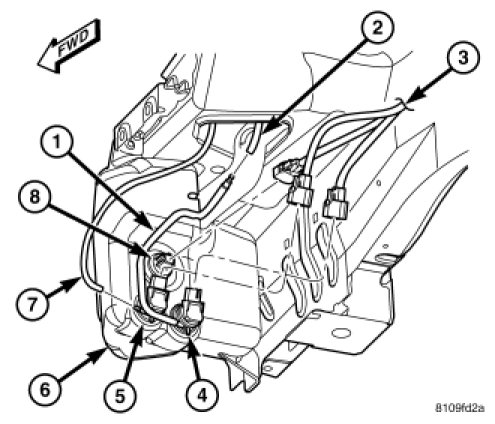

1. With grommet installed, position the washer fluid level switch (8) in grommet and firmly snap into place.
2. Connect the washer fluid level switch electrical connector.
3. Install inner splash shield.
4. Lower vehicle from hoist.
5. Connect the battery negative cable.
6. Top off washer fluid reservoir.
7. Close hood.
