Accelerator Pedal Position Sensor: Removal

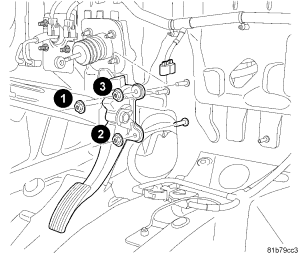

Fig 1: ACCELERATOR PEDAL - LHD
GC0070498Courtesy of CHRYSLER LLC
  1. Disconnect and isolate negative battery cable at battery.
  2. Disconnect the electrical connector from accelerator pedal.
  3. Remove mounting nuts and remove accelerator pedal from the mounting studs.
