Right Side Shield

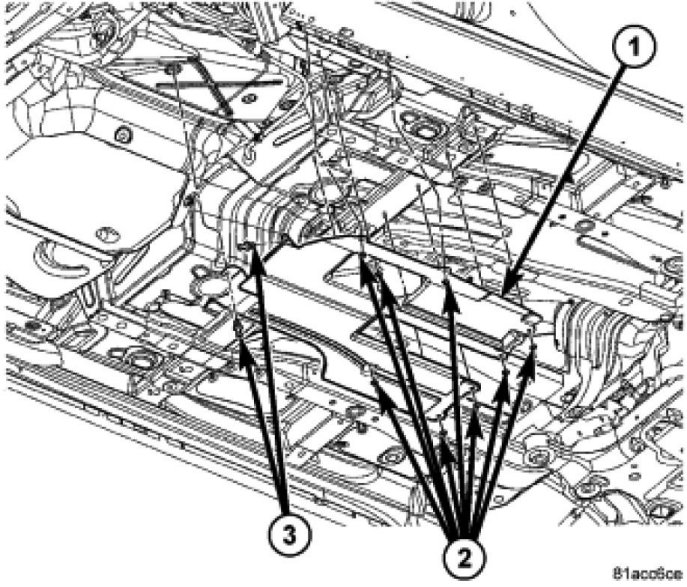

RIGHT SIDE SHIELD
1.
Install the right shield (1), push pins (3) and tighten the nuts (2) to 29 Nm (21 ft. lbs.).
