Installation

INSTALLATION





NOTE: LHD model shown. RHD model similar.

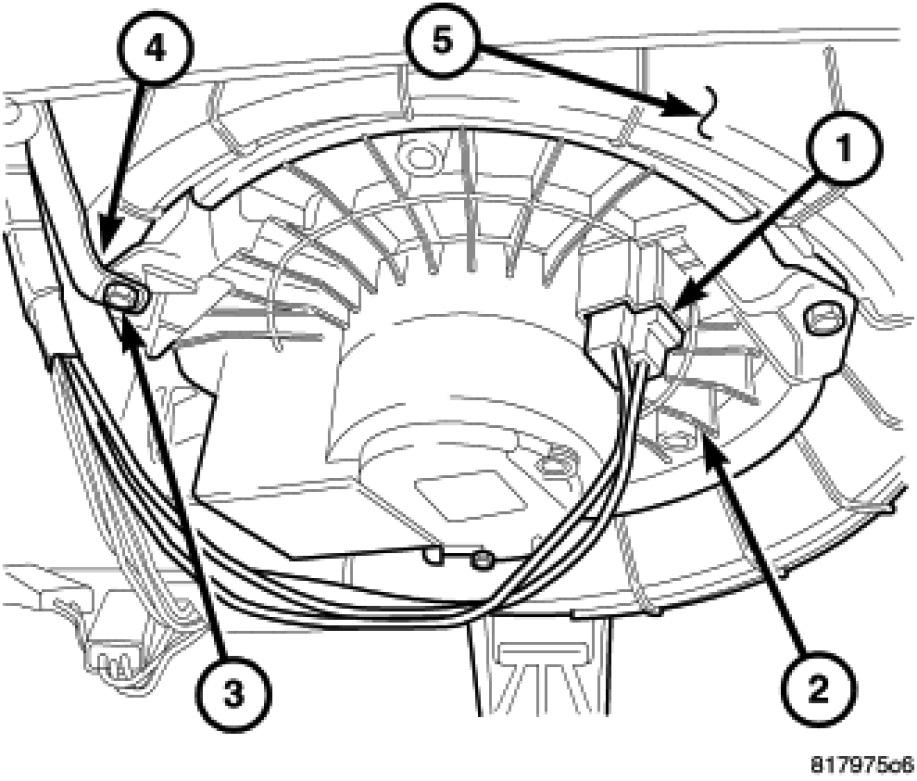

1. Position the blower motor (2) into the bottom of the HVAC housing (5).
2. Install the three screws (3) that secure the blower motor and the wire lead bracket (4) (if equipped) to the HVAC housing. Tighten the screws to 1.2 Nm (10 in. lbs.).
3. Connect the instrument panel wire harness connector (1) to the blower motor and engage the connector lock.
4. If equipped, install the silencer below the passenger side of the instrument panel.
5. Reconnect the negative battery cable.
