Installation







INSTALLATION

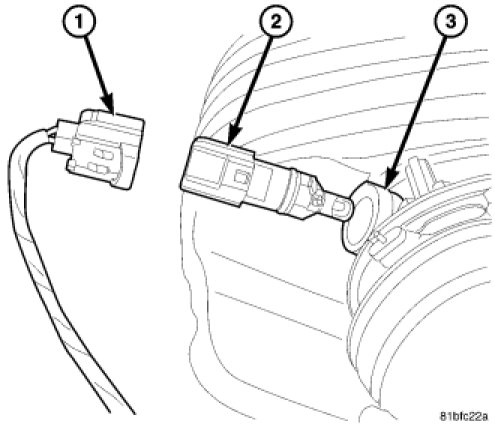

1. Install the inlet air temperature sensor (2) to the air box (3) by turning the sensor 1/4 turn in the clockwise direction.
2. Connect the inlet air temperature sensor electrical connector (1).
3. Connect negative battery cable and tighten to 16.5 Nm (145 in. lbs.).
