Generator - Installation

2.0, 2.4L

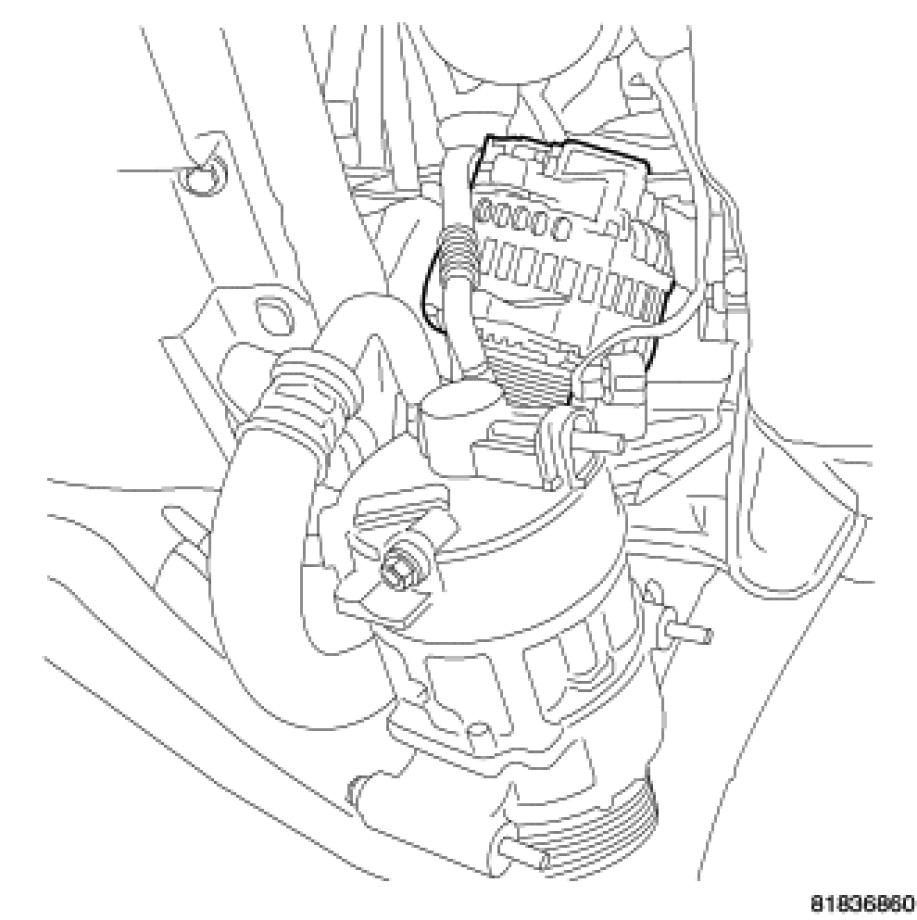

1. Move A/C compressor to the side to install generator.

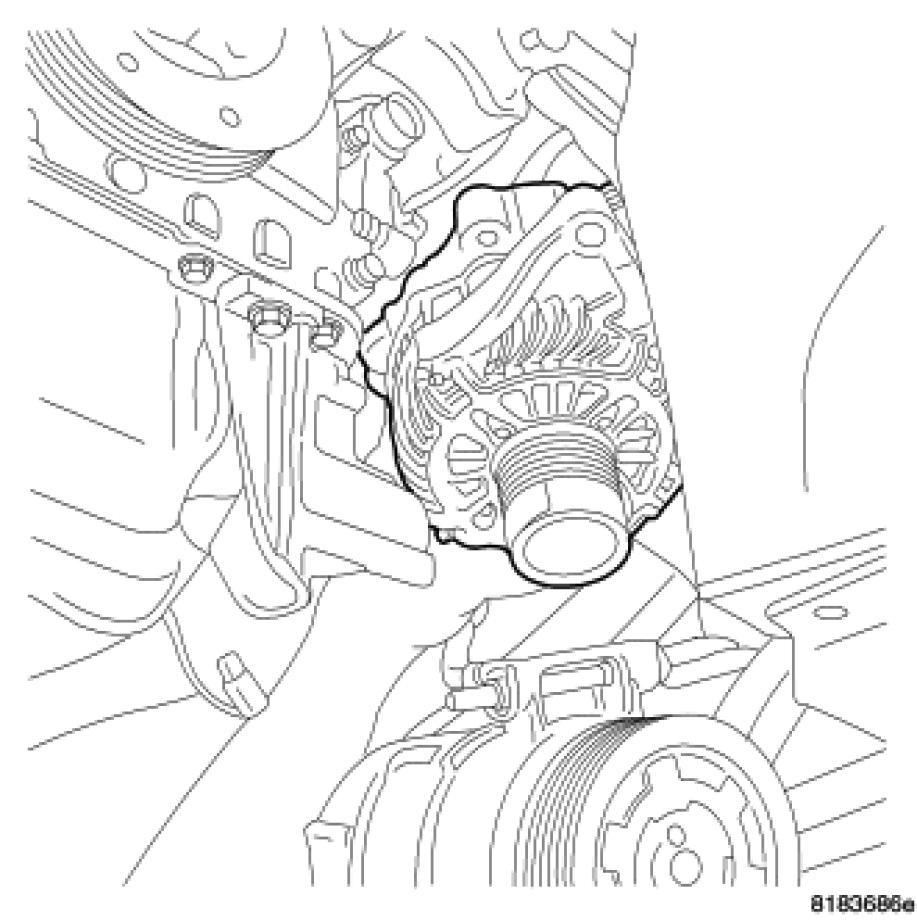

2. Rotate generator and set in place.

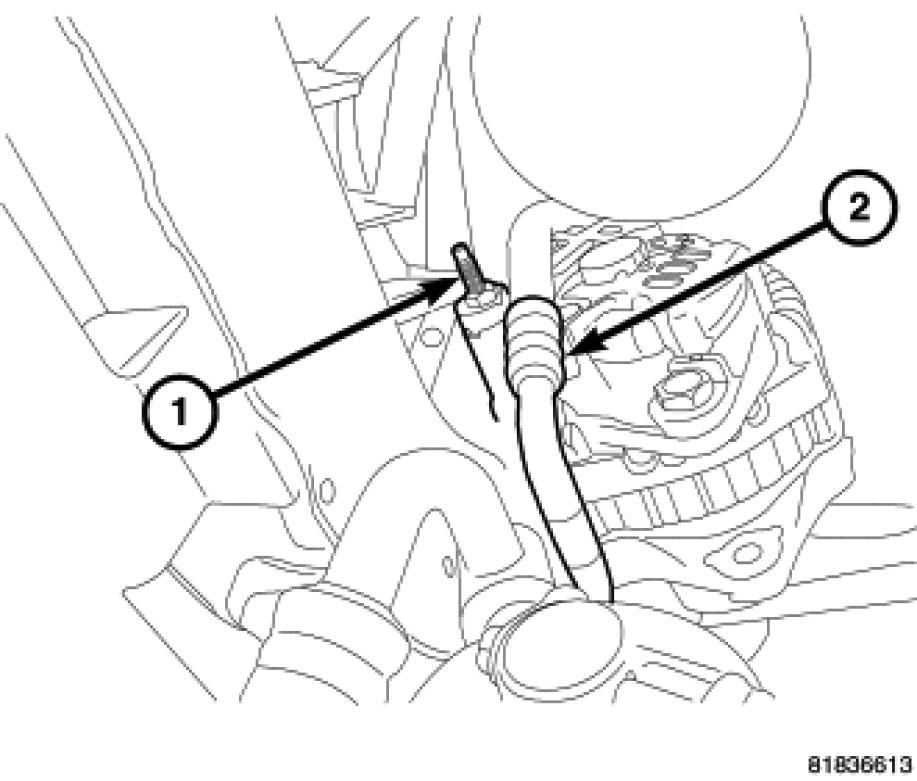

Make sure battery terminal (1) is in front of A/C line (2).

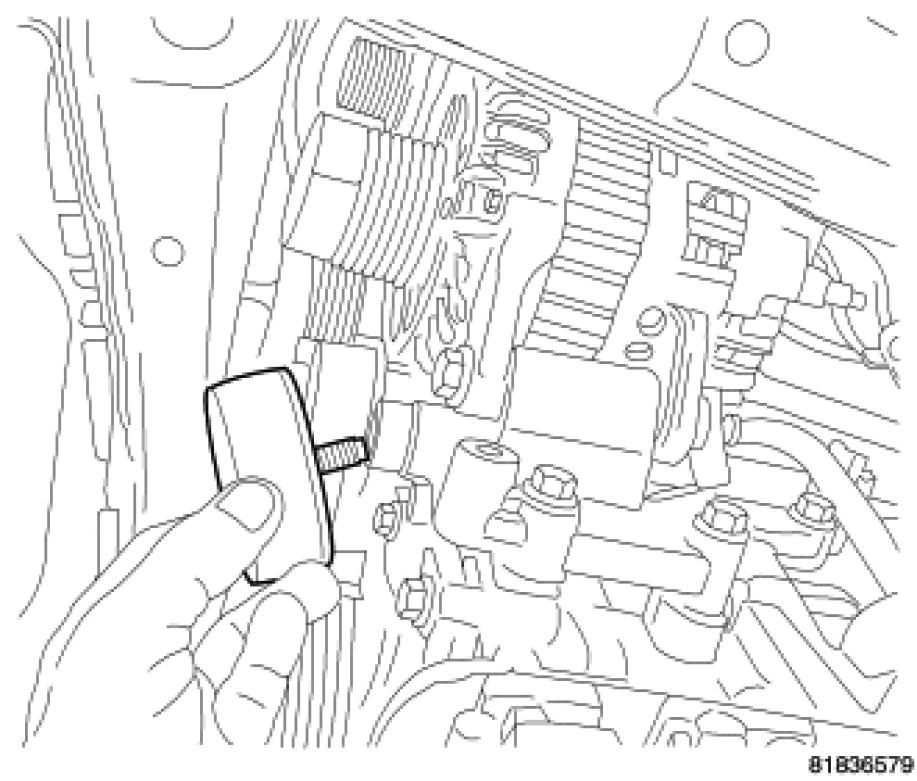

3. Loose install lower mounting bolt.

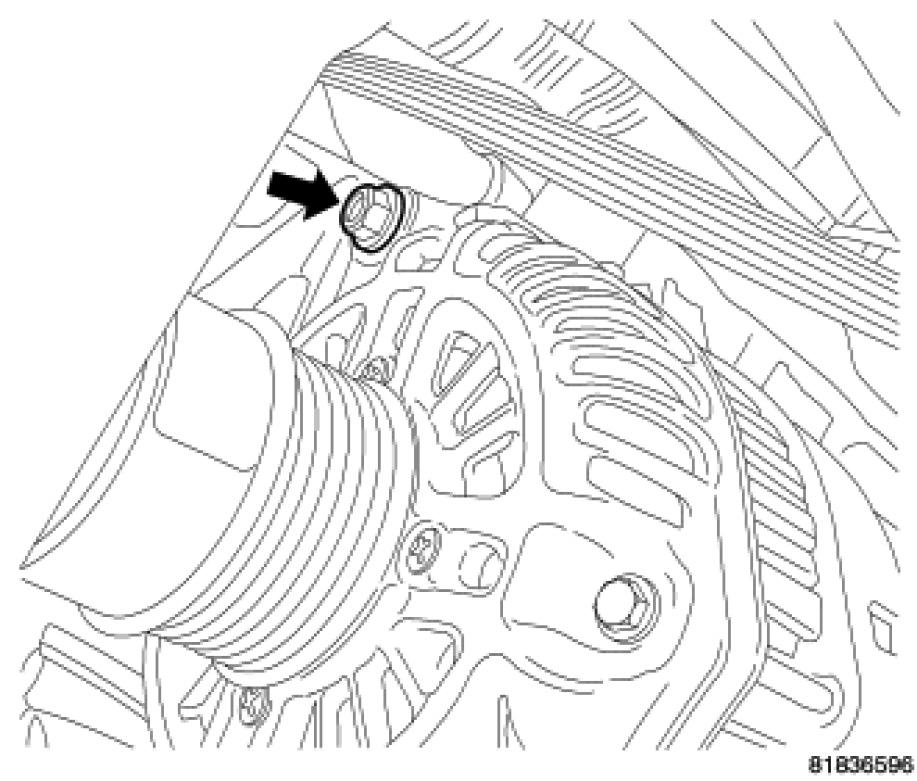

4. Loose install upper mounting bolt.
5. Tighten bolts to GAS 54 Nm (40 ft. lbs.) DIESEL 26 Nm (19 ft. lbs.).

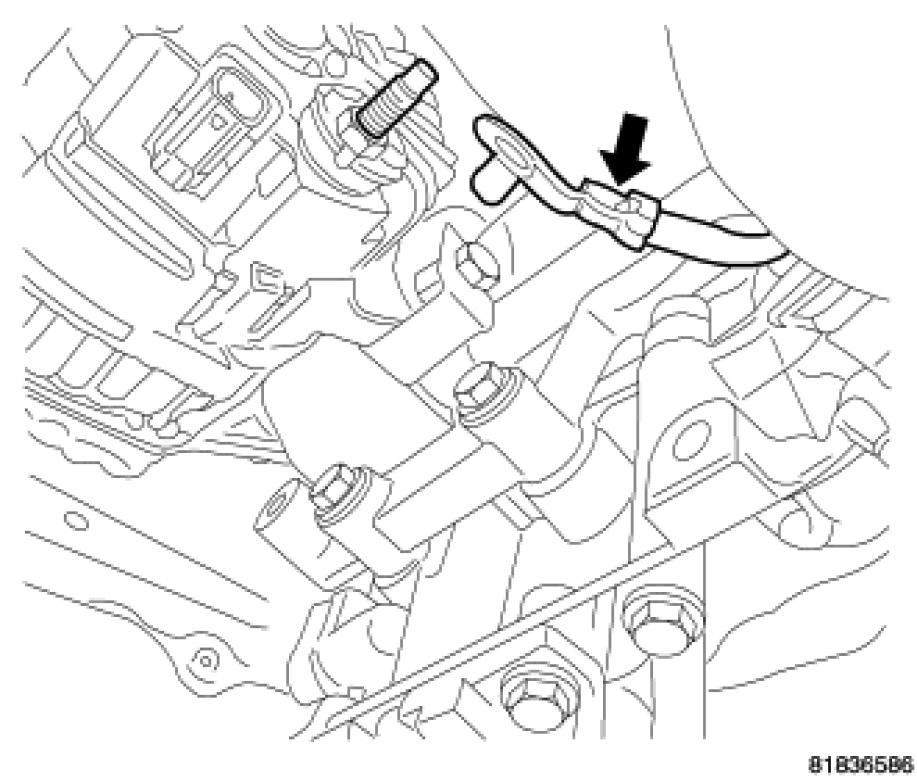

6. Install the B+ terminal nut and wire and tighten to GAS & DIESEL 10 Nm (88.5 in. lbs.).

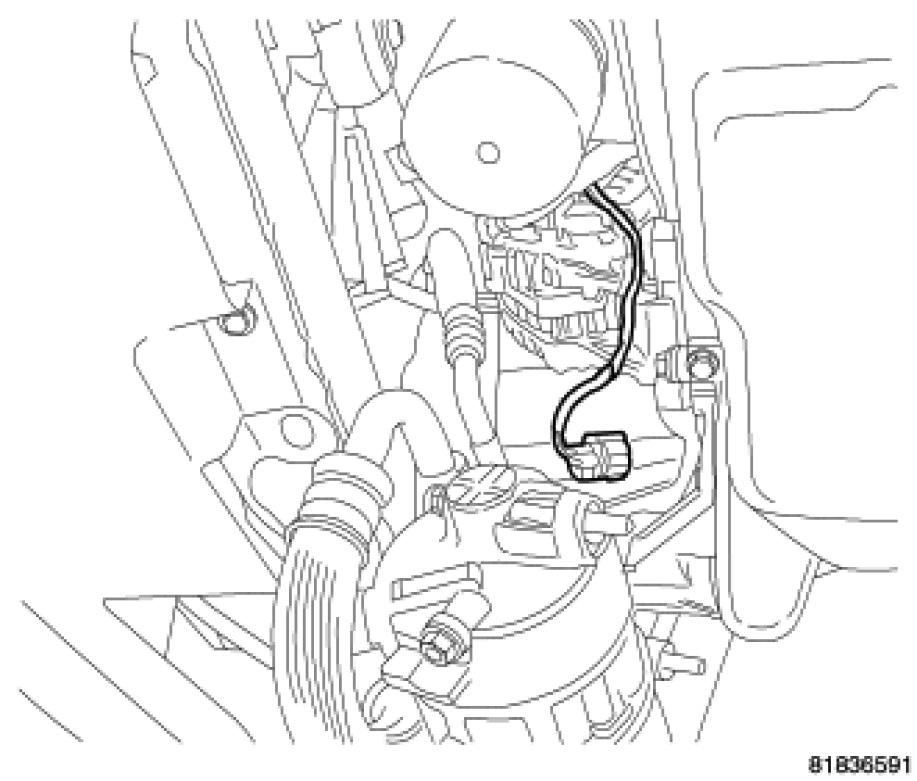

7. Plug in the field circuit to the generator.

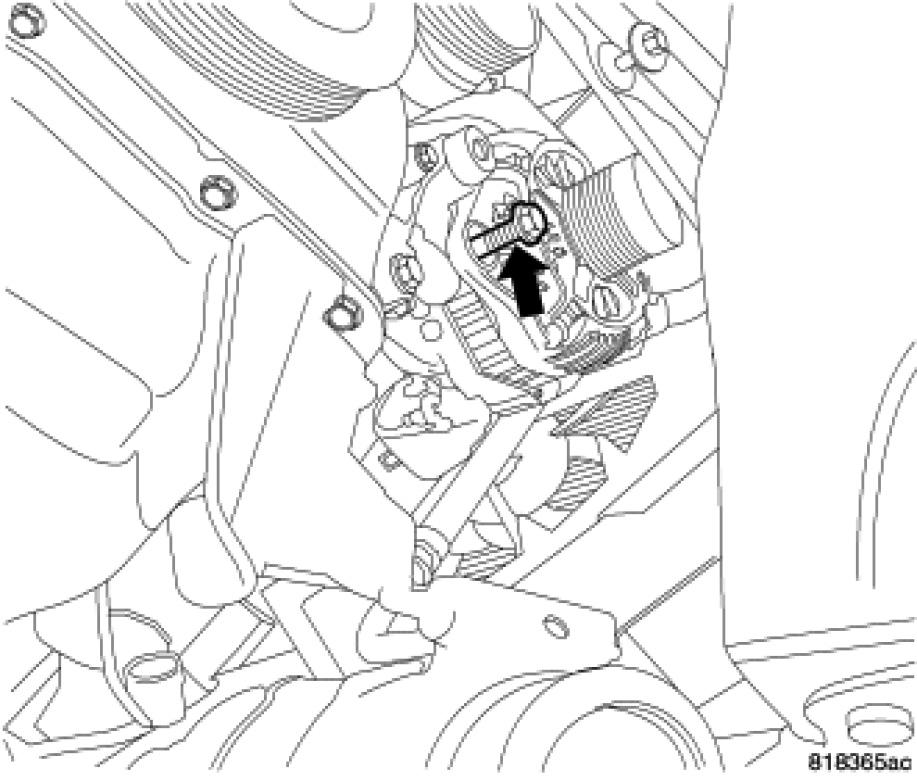

8. Install idler pulley and tighten bolt.
9. Install the accessory drive belt.

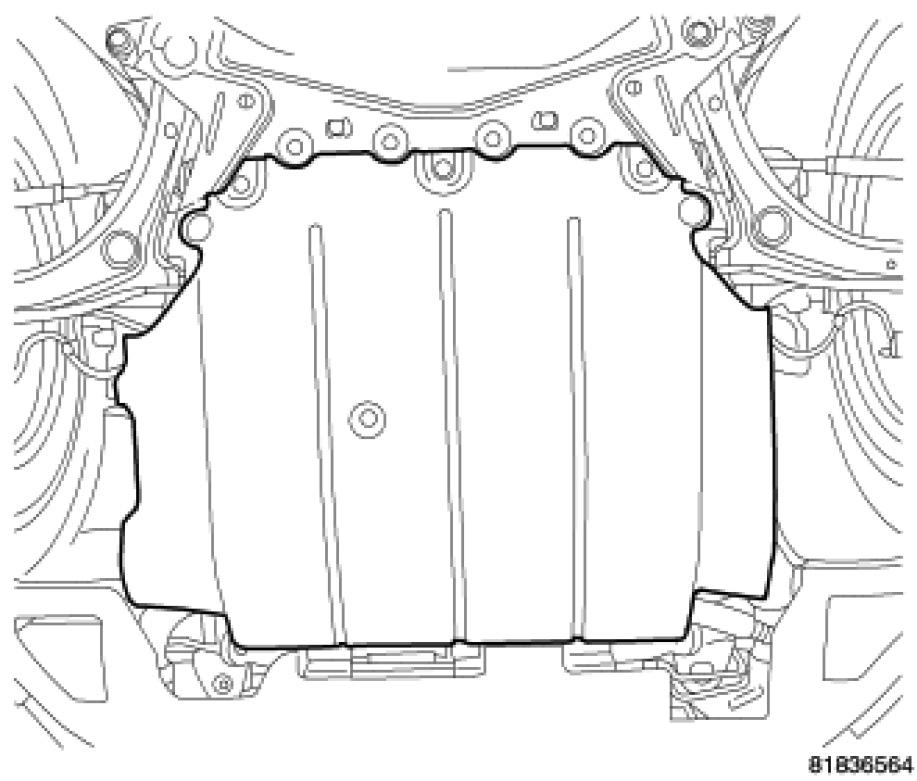

10. Install splash shield.




11. Install lower air dam.
12. Lower vehicle.
13. Connect the negative battery cable.
