Crankshaft Position Sensor: Description and Operation

CAMSHAFT & CRANKSHAFT SIGNALS




4 CYLINDER CAM & CRANK SIGNALS

NOTE: The graphic represents the relationship between camshaft and crankshaft sensors edges with camshafts in "lock pin" position (cam shafts are not "phasing"). This is normally seen during idle.

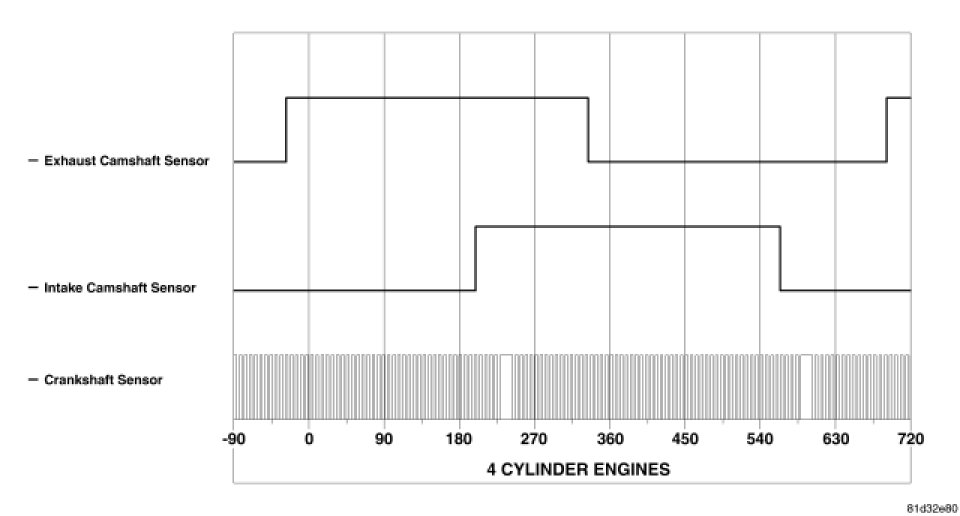

Depiction of good camshaft and crankshaft square wave signals for 4 cylinder engines.




6 CYLINDER CAM & CRANK SIGNALS

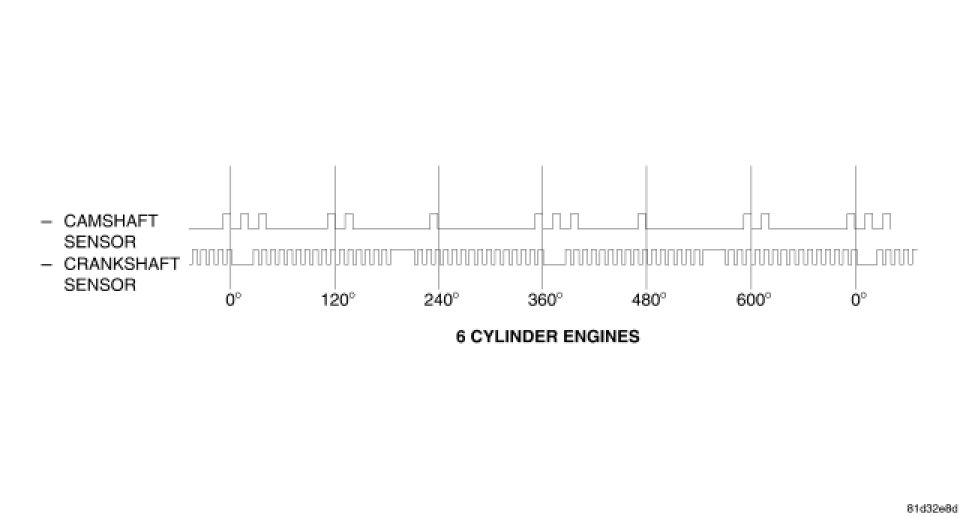

Depiction of good camshaft and crankshaft square wave signals for 6 cylinder engines.
