Generator - Installation

2.7L

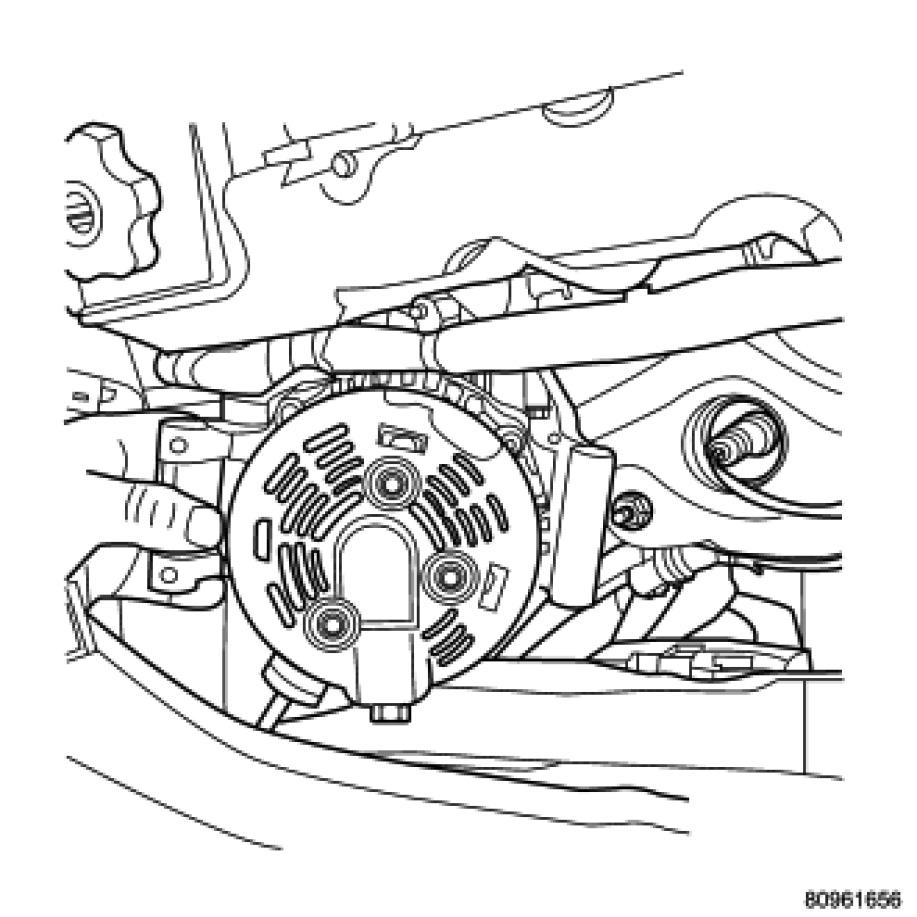

1. Install generator.
2. Install the 2 upper bolts but do not tighten.
3. Install the engine dip stick tube.
4. Connect the A/C pressure switch and A/C clutch electrical connectors.

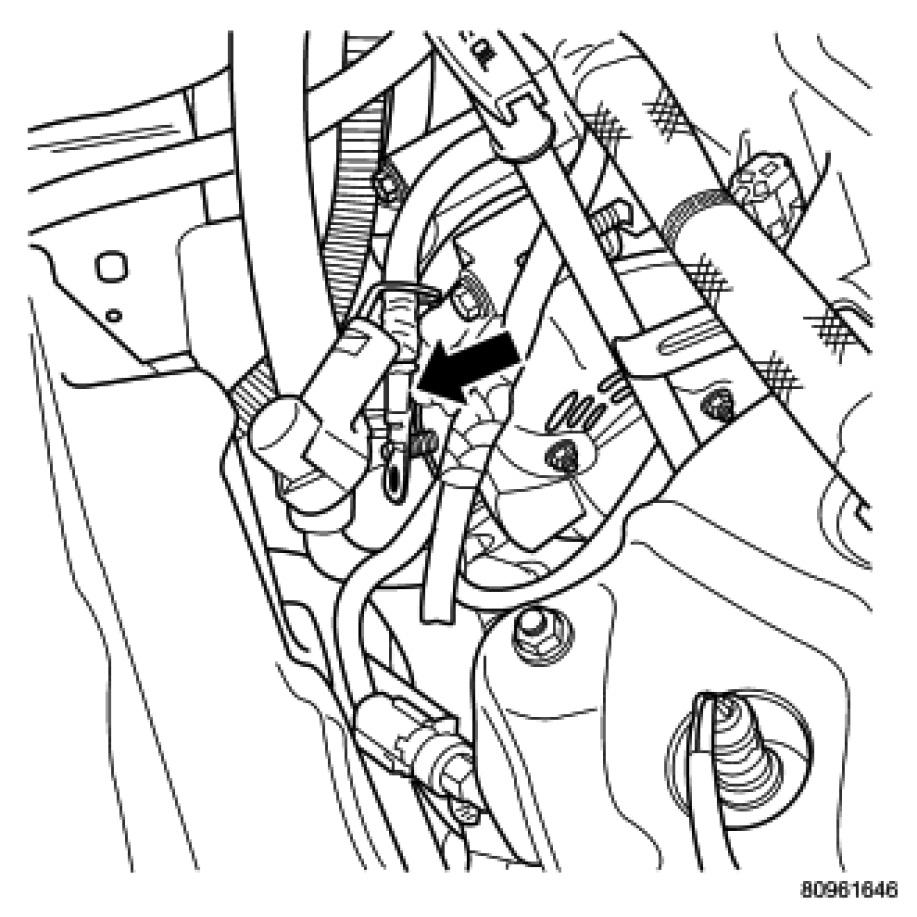

5. Connect the B+ terminal and field connectors.
6. Raise vehicle and support.
7. Install the lower bolt and tighten to 27 Nm (20 ft. lbs.).
8. Install the accessory drive belt.
9. Install the accessory drive splash shield.
10. Lower the vehicle.
11. Tighten the 2 upper mounting bolts to 27 Nm (20 ft. lbs.).
12. Connect the negative battery cable.
