Camshaft Position Sensor - Installation

3.5L





CAUTION: Install camshaft position (CMP) sensor utilizing twisting motion. Make sure CMP sensor is fully seated. Do not drive CMP sensor into the bore with mounting screw. This may cause CMP sensor to be incorrectly seated causing a faulty signal or no signal at all.

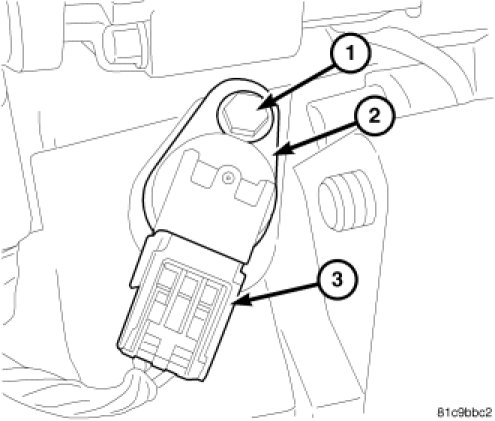

1. Install camshaft position CMP sensor (2) and mounting bolt (1). Tighten bolt to 12 Nm (106 in. lbs.).
2. Connect electrical connector (3) to camshaft position CMP sensor (2).
3. Connect negative battery cable, tighten nut to 5 Nm (45 in. lbs.).
