Module - Fuel Pump: Installation

Fig 1: Fuel Pump Module Seal

Courtesy of CHRYSLER LLC

Wipe seal area of tank clean and install a new O-ring seal to fuel tank.

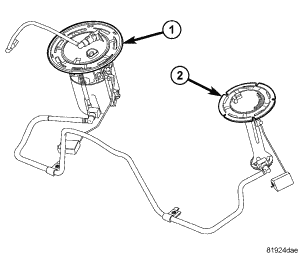

Fig 2: View Of Modules AWD Steel Tank
Courtesy of CHRYSLER LLC
Connect fuel line between fuel pump module (1) and fuel level unit (2), if equipped with AWD.

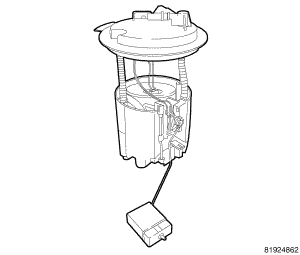

Fig 3: View Of Pump Module - Regular
Courtesy of CHRYSLER LLC
Install fuel pump module to fuel tank.

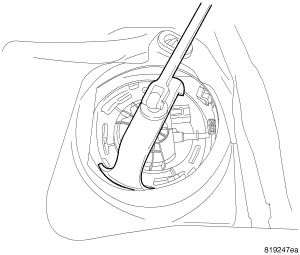

Fig 4: Identifying Module Lock Ring Tool
Courtesy of CHRYSLER LLC
Position fuel pump module into fuel tank, line up module with mark made during removal procedure. Install fuel pump module lock using special tool 9340. Tighten until the lock ring and fuel pump module is fully seated.

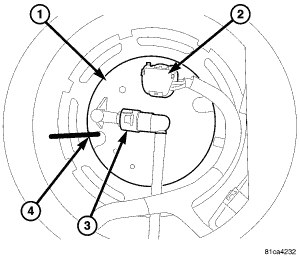

Fig 5: Fuel Pump Module Connection
Courtesy of CHRYSLER LLC
Connect fuel line (3) to fuel pump module (1).
Connect the electrical connector (2).
Connect the battery cable.
Fill fuel tank. Use the scan tool to pressurize the fuel system. Check for leaks.
