Chrysler
>>
2009
>>
300 C, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Electronic Shift Module (ESM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
P0930-BTSI Control Circuit Low - Column Shift
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

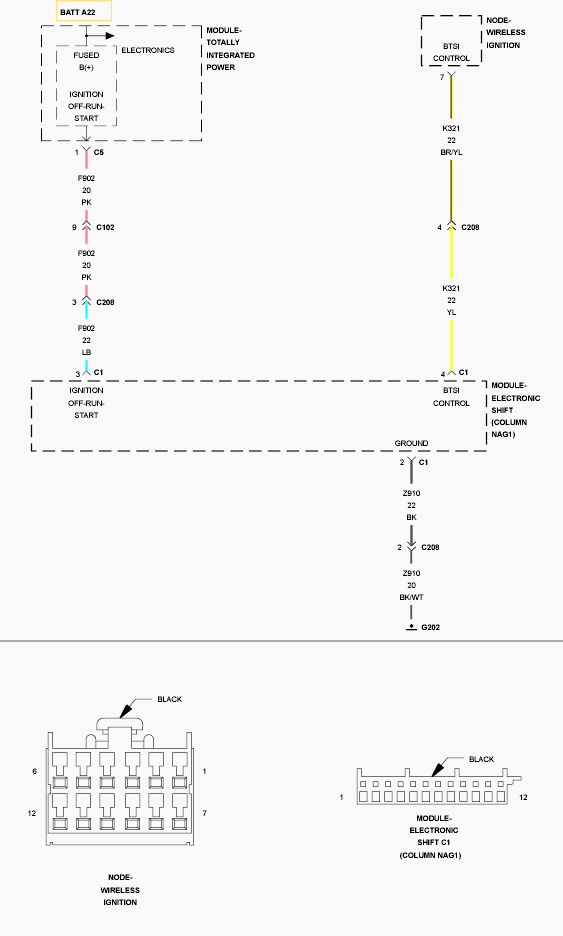

Fig 1: Brake Transmission Shift Interlock (BTSI) Control Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
