Checking The Map Sensor Performance: Notes

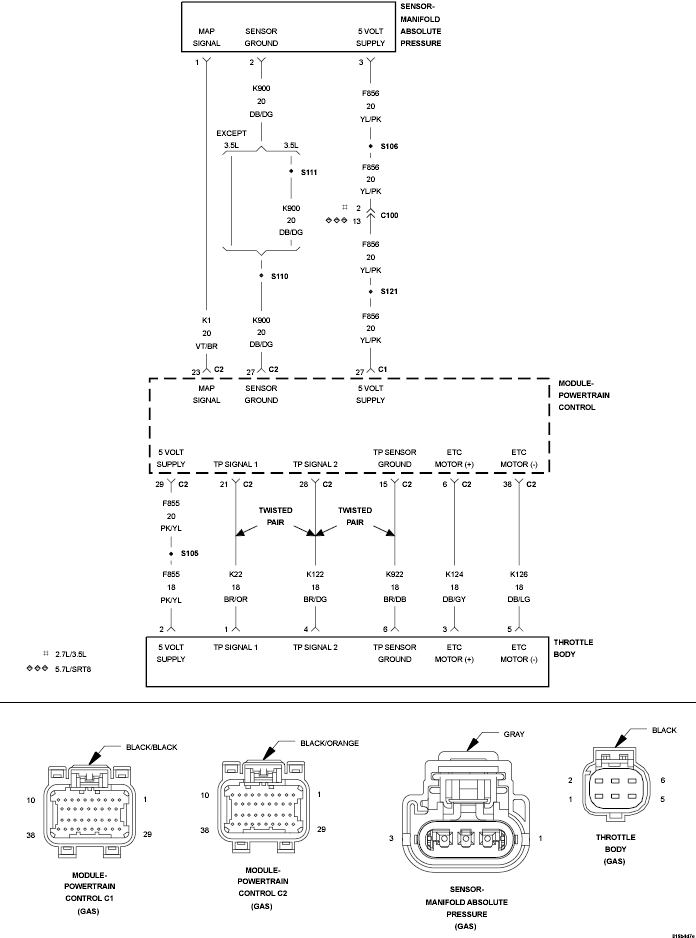

Fig 1: Manifold Absolute Pressure Sensor - Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to:

• SYSTEM WIRING DIAGRAMS for 300.
• SYSTEM WIRING DIAGRAMS for Charger.
