Engine Torque Specifications

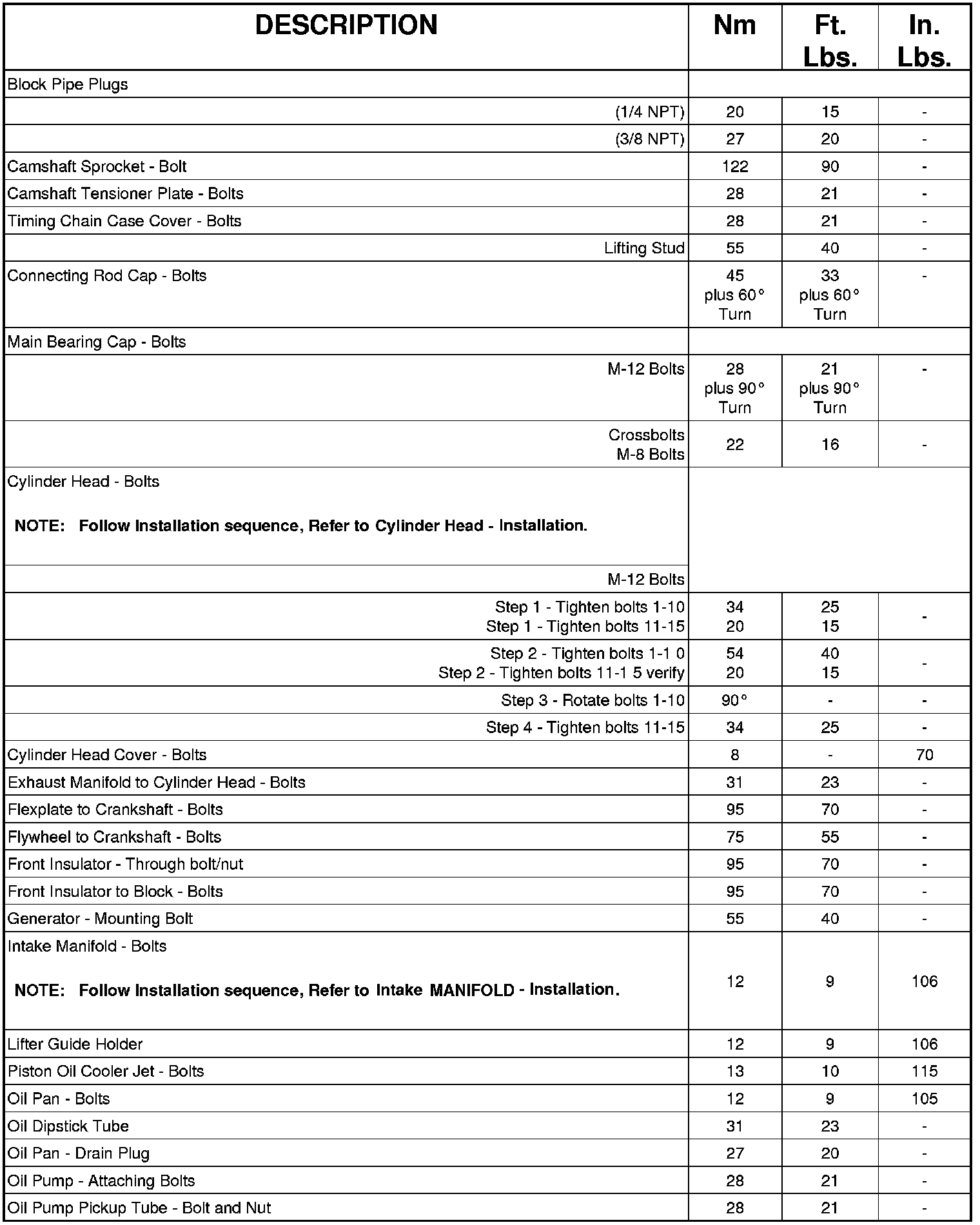

TORQUE

6.1L ENGINE

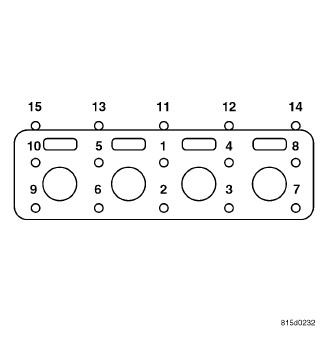

Cylinder Head Sequence






Intake Manifold Sequence






Main Bearing Cap Sequence

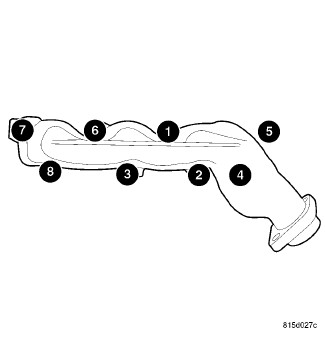

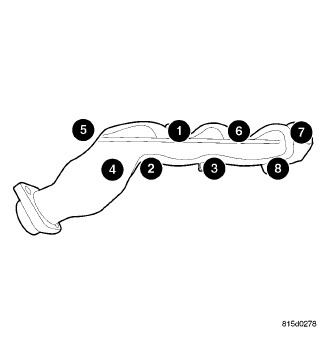

Exhaust Manifold Sequence
