P0440-General EVAP System Failure
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

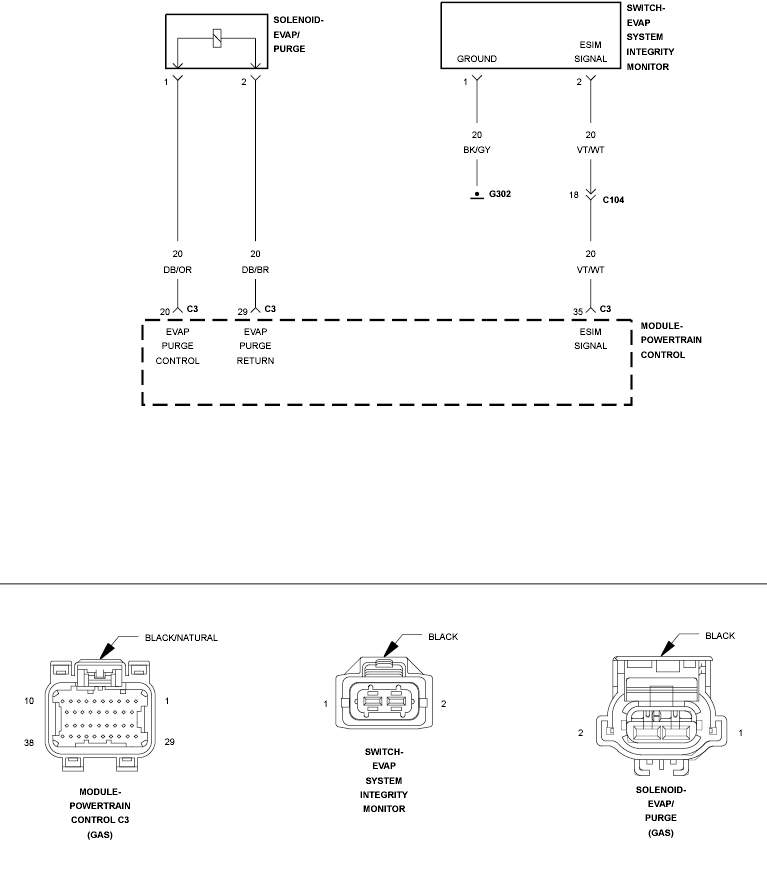

Fig 1: EVAP System Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
