Chrysler
>>
2009
>>
300 SRT-8
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
DTCS P0645 To P1572
>>
P0685-Auto Shutdown Control Circuit
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

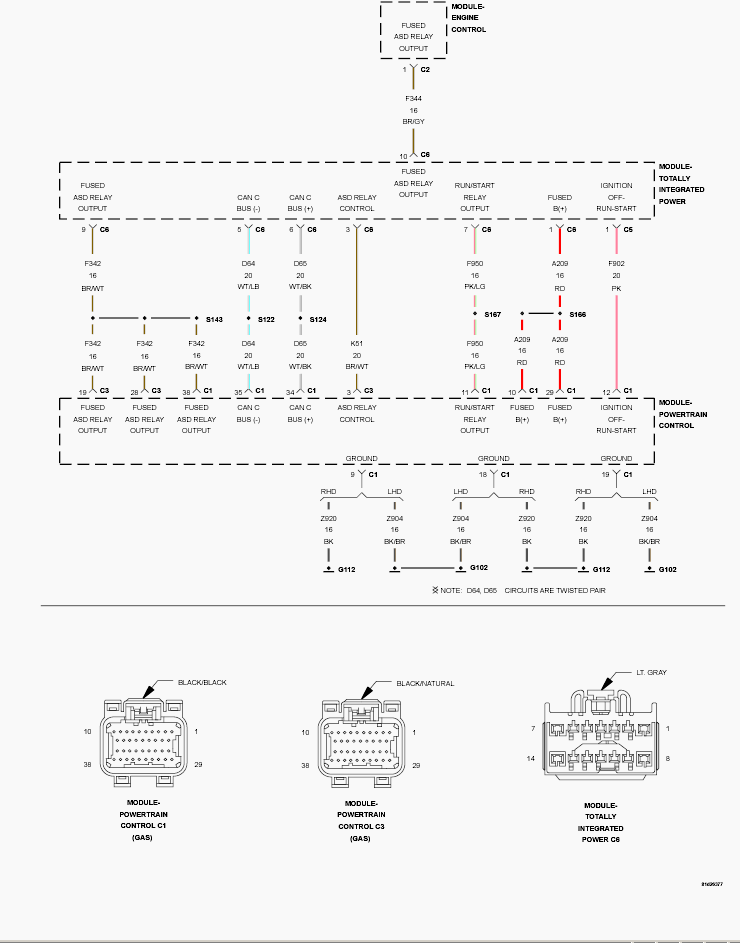

Fig 1: Auto Shutdown Control Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
