P0461-Fuel Level Sensor 1 Performance
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

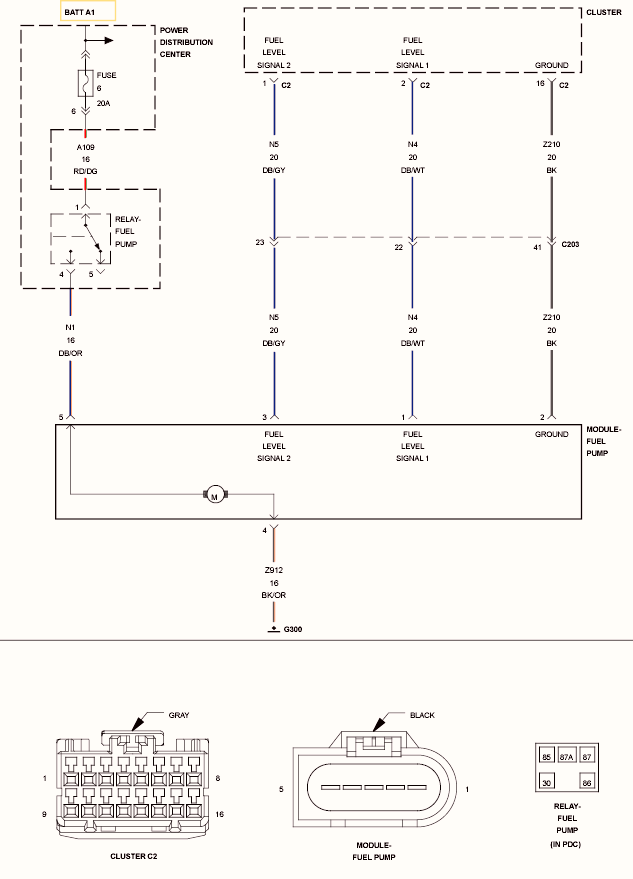

Fig 1: Fuel Level Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
