Ignition Capacitor - Installation

6.1L

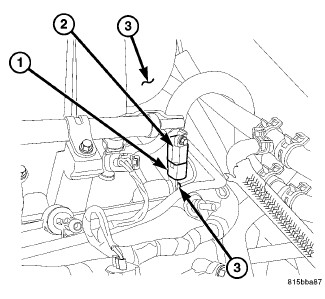

1. Install ignition capacitor (2) to left rear corner of intake manifold (3).
2. Install mounting bolt.
3. Install electrical connector (1).
4. Connect negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
