Diagnostic Test

CHECK FOR ACTIVE DTC B10ED-REAR DEFROST CONTROL CIRCUIT OVERCURRENT
1. Turn the ignition on.
2. With the scan tool, record and erase DTC's
3. Operate the Rear Defogger Switch several times.
4. With the scan tool, read DTC's.
  Does the scan tool display active DTC B10ED-REAR DEFROST CONTROL CIRCUIT OVERCURRENT?

  Yes
  - Go to step 2
  No
  - The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
VISUAL AND PHYSICAL CONNECTOR AND TERMINAL INSPECTION
1. Turn the ignition off.
2. Inspect the following connector terminal condition. Check for signs of corrosion build up or damage that would compromise the terminal to controller pin connector.
  NOTE: Make sure that all in-line connectors are inspected for corrosion and/or damage.
3. Disconnect the TIPM C8 harness connector.
4. Visually inspect the wiring harness. Look for any chafed, pierced, pinched or partially broken wires hidden in the wire insulation.
  Were any of the above conditions found?

  Yes
  - Repair or replace as necessary.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Go to step 3
VEHICLE EQUIPPED WITH HEATED MIRRORS
Is vehicle equipped with heated mirrors?

Yes
- Go to step 4
No
- Go to step 7
(C16) FUSED REAR DEFOGGER CONTROL OUTPUT CIRCUIT HIGH RESISTANCE

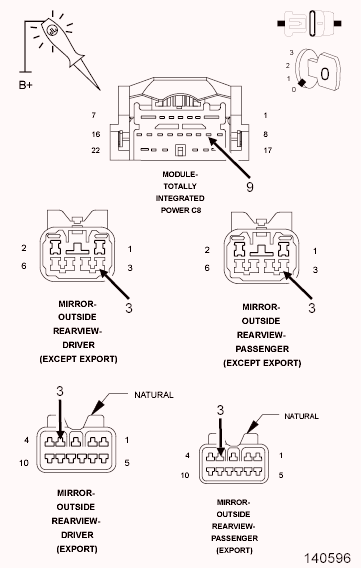

Fig 1: Checking Fused Rear Defogger Control Output Circuit
Courtesy of CHRYSLER LLC
1. Disconnect both mirror connectors.
2. With a jumper wire, connect one end to the (C16) Fused Rear Defogger Control Output circuit at one mirror connector and the other to a clean chassis ground.
3. Using a 12-volt test light to battery voltage, probe the (C16) Rear Defogger Control Output circuit in the TIPM C8 harness connector.
  NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

  NOTE: Repeat this test for each outside mirror.

  Does the test light illuminate brightly for each mirror circuit?

  Yes
  - Go to step 5
  No
  - Repair the excessive resistance in the (C16) Fused Rear Defogger Control Output circuit.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
DISCONNECT ONE MIRROR AND RE- CHECK DTC
NOTE: For this step have only one outside rearview mirror disconnected at a time and re- check DTC's
1. Reconnect the TIPM and one outside rearview mirror.
2. With the scan tool, erase TIPM DTCs.
3. Operate the Rear Defogger Switch several times.
4. With the scan tool, read TIPM DTCs.
  Does the scan tool continue to display active DTC B10ED-REAR DEFROST CONTROL CIRCUIT OVERCURRENT for each mirror?

  Yes
  - Go to step 7
  No
  - Go to step 6
(Z906)/(Z907) GROUND CIRCUIT

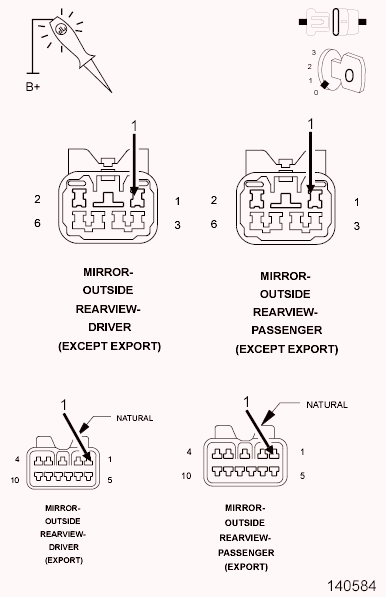

Fig 2: Checking Ground Circuit
Courtesy of CHRYSLER LLC

NOTE: Perform this test on the mirror that caused the code to set.
1. Using a 12-volt test light connected to 12-volts, probe the (Z906) or (Z907) ground circuit at the mirror connector.
  Does the test light illuminate brightly?

  Yes
  - Inspect mirror pigtail wiring and repair or replace mirror as necessary.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Repair the excessive resistance in the (Z906) or (Z907) Ground circuit.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
(C515) REAR DEFOGGER CONTROL OUTPUT CIRCUIT HIGH RESISTANCE

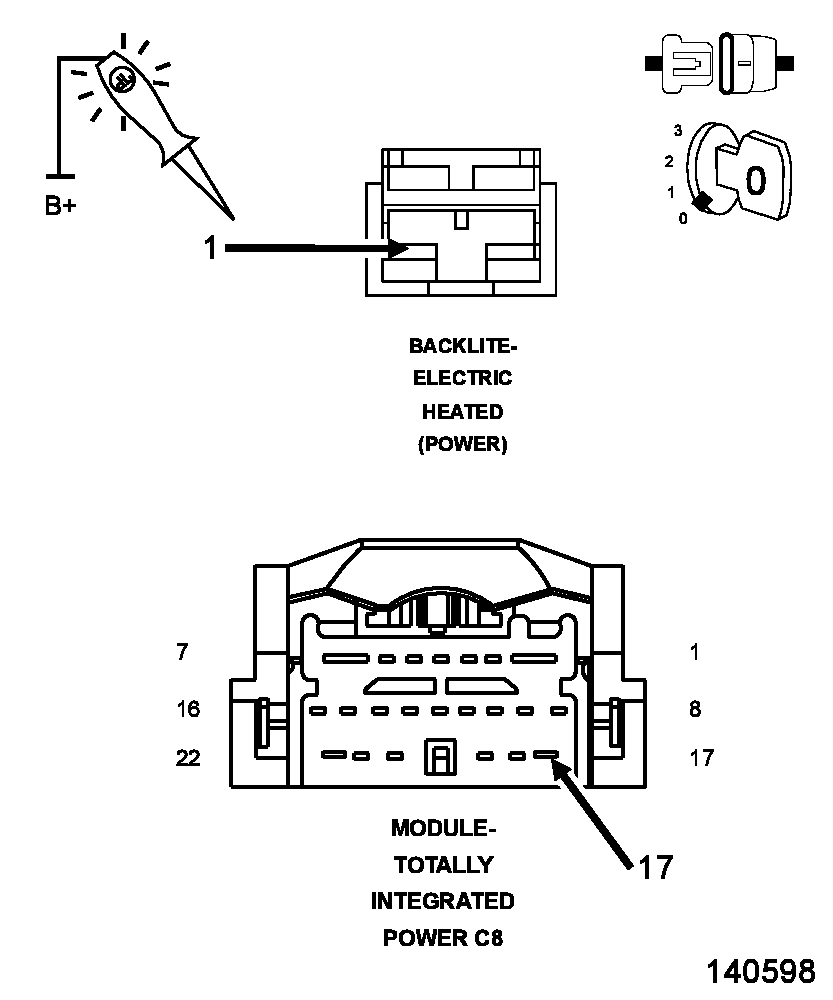

Fig 3: Checking Rear Defogger Control Output Circuit
Courtesy of CHRYSLER LLC
1. Disconnect the TIPM C8 if not disconnected.
2. Disconnect the Electric Heated Backlite (Power) 1- way connector.
3. With a jumper wire, connect one end to the (C515) Rear Defogger Control Output circuit at the 1- way connector and the other to a clean chassis ground.
4. Using a 12-volt test light to battery voltage, probe the (C515) Rear Defogger Control Output circuit in the TIPM C8 harness connector.
  NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.

  Does the test light illuminate brightly?

  Yes
  - Go to step 8
  No
  - Repair the excessive resistance in the (C515) Rear Defogger Control Output circuit.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
CHECKING THE WINDOW GRID AND (Z908) GROUND CIRCUIT
1. Turn the ignition off.
2. Disconnect the Electric Heated Backlite (Power) 1- way connector.
3. Using a 12-volt test light connected to 12-volts, probe the power terminal at the grid.
  Does the test light illuminate? Compare with a known good vehicle if necessary.

  Yes
  - Go to step 10
  No
  - Go to step 9
(Z908) GROUND CIRCUIT OPEN

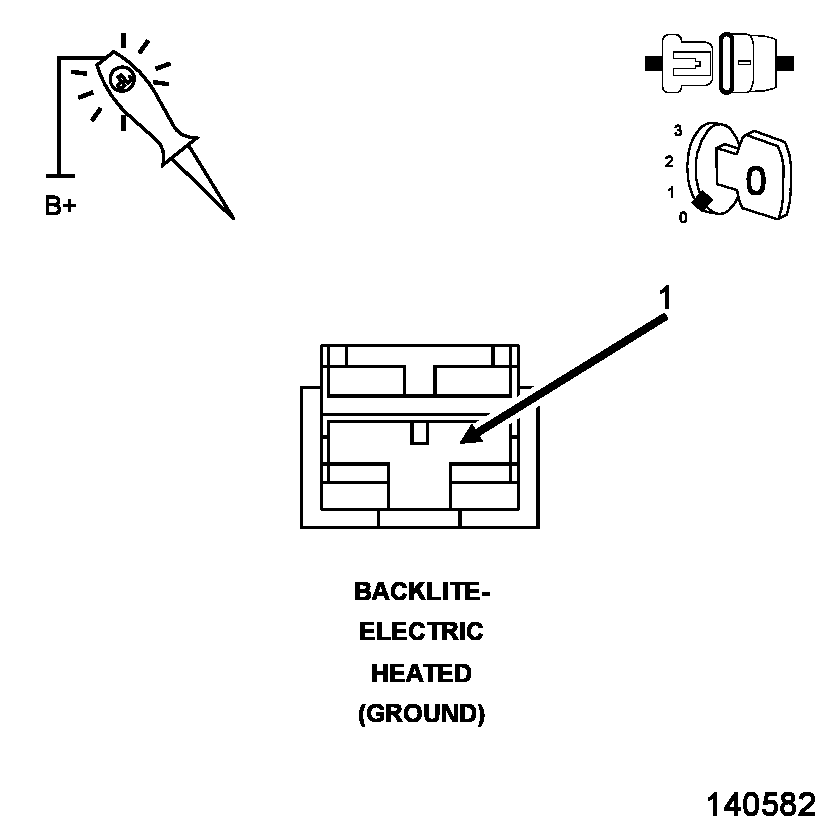

Fig 4: Checking Ground Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Electric Heated Backlite (Ground) 1- way connector.
3. Using a 12-volt test light connected to 12-volts, probe the (Z908) ground circuit at the 1-way connector.
  Does the test light illuminate brightly?

  Yes
  - Repair the open or excessive resistance in the Rear Window Defogger Grid.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Repair the open or excessive resistance in the (Z908) Ground circuit.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
TOTALLY INTEGRATED POWER MODULE
NOTE: Before continuing, check the TIPM harness connector terminals for corrosion, damage, or terminal push out. Repair as necessary.
1. Using the schematics as a guide, inspect the wire harness and connectors.
2. Pay particular attention to all Power and Ground circuits.
  Were any problems found?

  Yes
  - Repair as necessary.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Replace the Totally Integrated Power Module in accordance with the Service Information.
  - Perform BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
