Diagnostic Test

INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, clear all TIPM DTCs.
3. Turn the Right Turn Signals on.
4. With the scan tool read the DTC information.
  Does the scan tool read: B1647-REAR RIGHT TURN CONTROL CIRCUIT LOW?

  Yes
  - Go to step 2
  No
  - The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
(L62) RIGHT REAR TURN SIGNAL CONTROL CIRCUIT

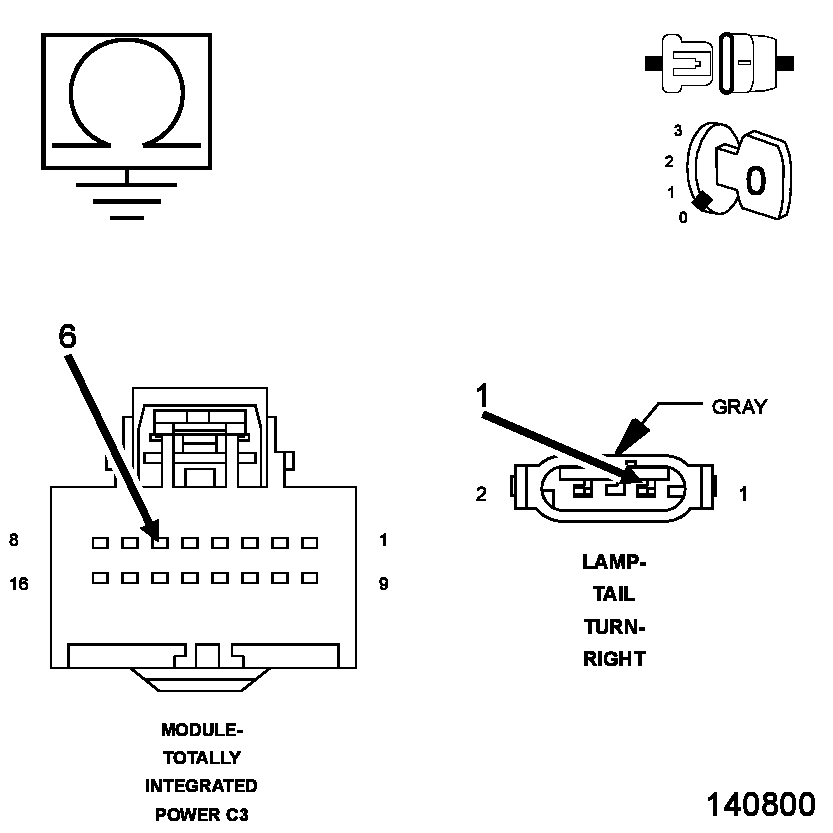

Fig 1: Checking Right Rear Turn Signal Control Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C3 connector.
3. Disconnect the Right Rear Tail Lamp harness connector.
4. Measure the resistance between ground and the (L62) Right Rear Turn Signal Control circuit.
  Is the resistance below 5.0 Ohms?

  Yes
  - Repair the (L62) Right Rear Turn Signal Control circuit for a short to ground.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Replace the Totally Integrated Power Module (TIPM) in accordance with the Service Information.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
