Chrysler
>>
2009
>>
PT Cruiser Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
(Totally Integrated Power Module (TIPM) - Electrical Diagnostics)
>>
DTC Troubleshooting
>>
B1661-Front Fog Lamp Control Circuit Open
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

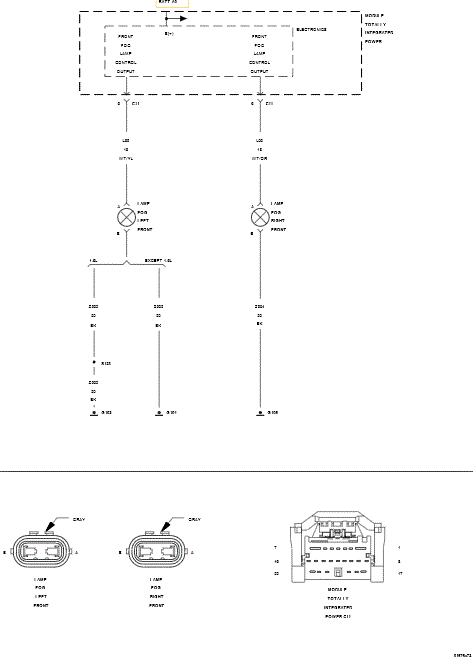

Fig 1: Front Fog Lamp Control Circuit Schematic
Courtesy of CHRYSLER LLC
