Diagnostic Test

INTERMITTENT CONDITION
1. Turn the ignition on.
2. With the scan tool, clear all TIPM DTCs.
3. Turn the Rear Fog Lamps on.
4. With the scan tool read the DTC information.
  Does the scan tool read: B1664-REAR FOG LAMP CONTROL CIRCUIT HIGH?

  Yes
  - Go to step 2
  No
  - The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
LEFT AND RIGHT REAR FOG LAMP BULBS
1. Turn the ignition off.
2. Inspect the Left and Right Fog Lamp Bulb Assemblies.
  Are the inoperative bulbs OK?

  Yes
  - Go to step 3
  No
  - Replace the Inoperative bulb(s) in accordance with the service information.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
(L239) REAR FOG LAMP CONTROL CIRCUIT OPEN

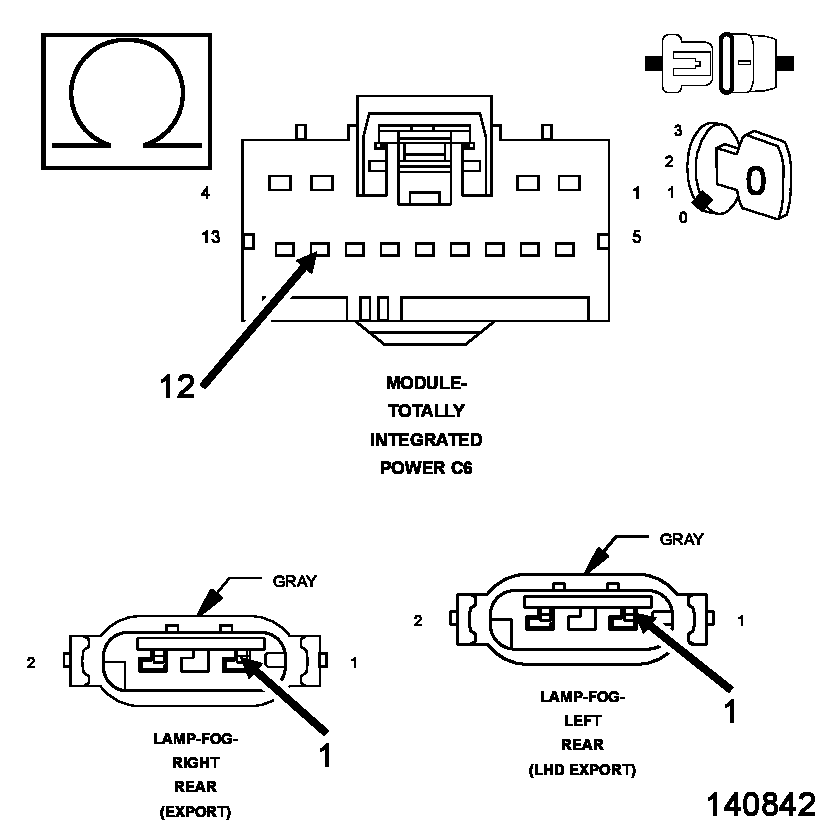

Fig 1: Checking Rear Fog Lamp Control Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C6 harness connector.
3. Disconnect the Left and Right Rear Fog Lamp harness connectors.
4. Measure the resistance of the (L239) Rear Fog Lamp Control circuit.
  Is the resistance above 5.0 Ohms?

  Yes
  - Repair the (L239) Rear Fog Lamp Control circuit for an open condition.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Go to step 4
(L239) REAR FOG LAMP CONTROL CIRCUIT SHORTED TO VOLTAGE

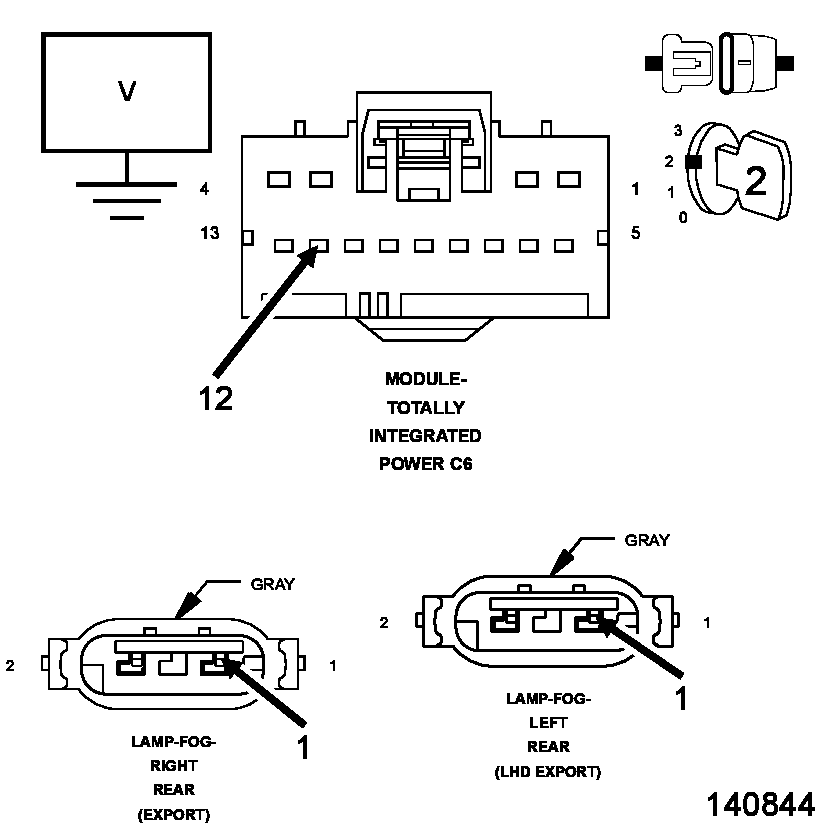

Fig 2: Checking Rear Fog Lamp Control Circuit
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C6 harness connector.
3. Disconnect the Left and Right Rear Fog Lamp harness connectors.
4. Turn the ignition on.
5. Measure for voltage on the (L239) Rear Fog Lamp Control circuit.
  Is the voltage above 10.0 volts?

  Yes
  - Repair the (L239) Rear Fog Lamp Control circuit for a short to voltage condition.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
  No
  - Replace the Totally Integrated Power Module (TIPM) in accordance with the service information.
  - Perform the BODY VERIFICATION TEST. See DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Standard Procedure .
