B1669-Reverse Lamp Control Circuit Open
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
B1669-Reverse Lamp Control Circuit Open: Notes

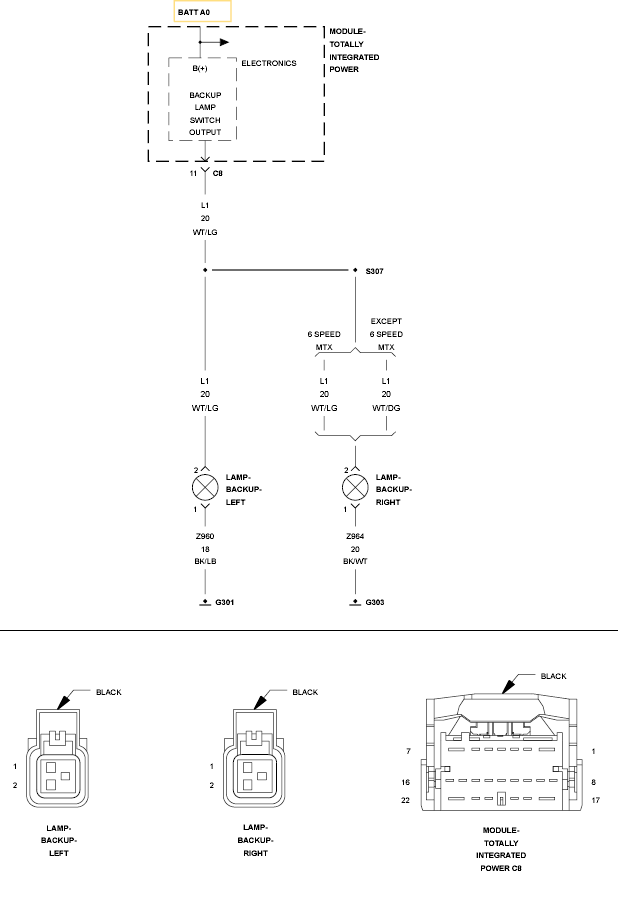

Fig 1: Reverse Lamp Control Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
