P0516-Battery Temperature Sensor Circuit Low: Notes

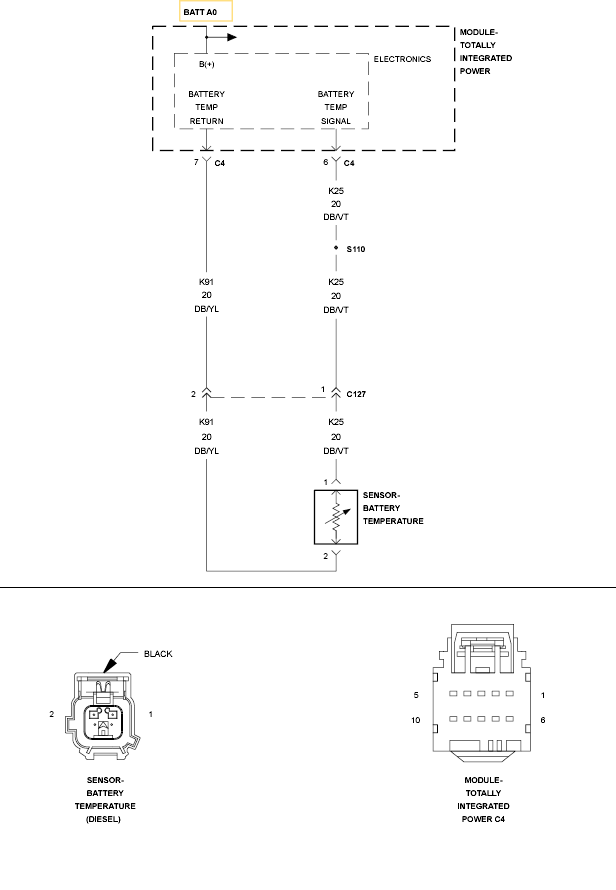

Fig 1: Battery Temperature Sensor Circuit

GC0117492

Courtesy of CHRYSLER LLC
