P1274-A/C Clutch Control Circuit 2 Open: Notes

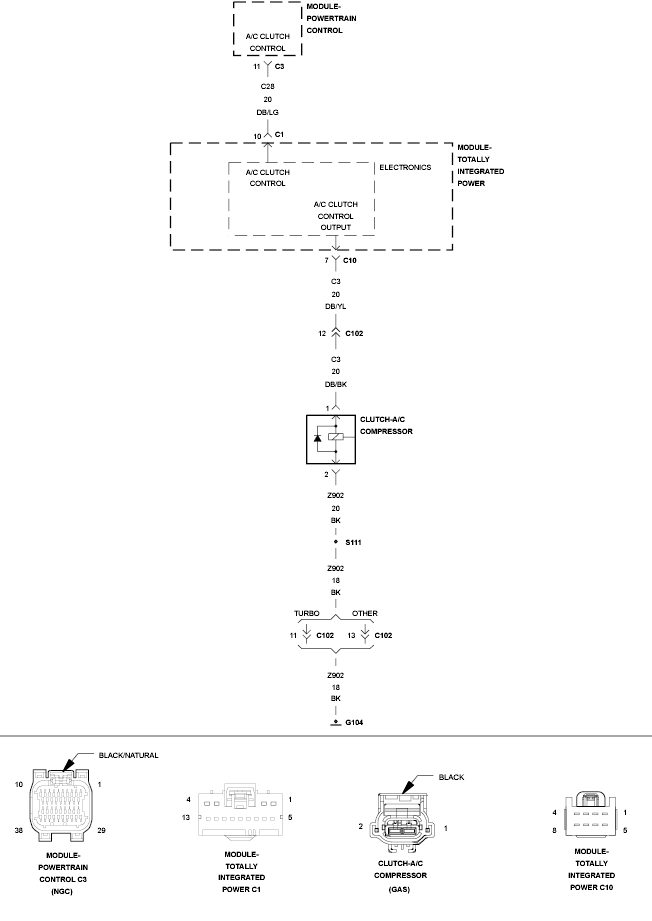

Fig 1: Checking A/C Clutch Relay Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
