P128B-TCM Power Control Circuit 2 Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

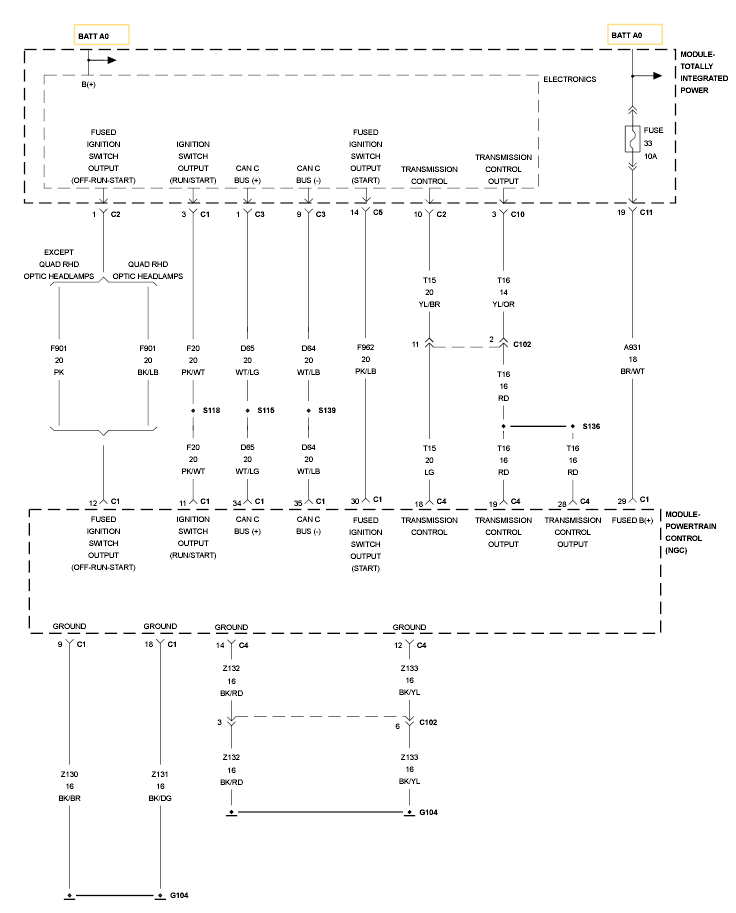

Fig 1: Transmission Control Output & Fused Ignition Switch Output Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
