P0108-Manifold Absolute Pressure Sensor Circuit High: Notes

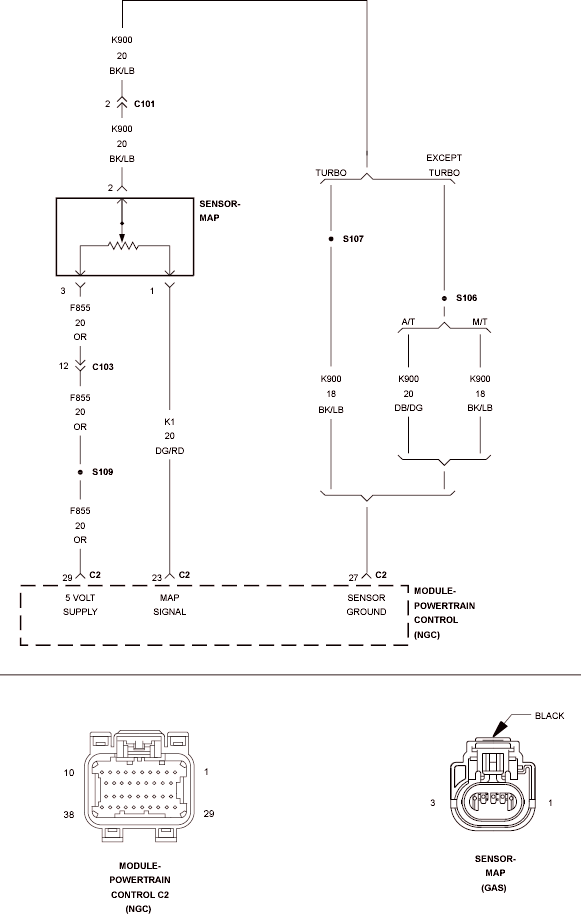

Fig 1: Manifold Absolute Pressure Sensor Circuit
GC0117159Courtesy of CHRYSLER LLC
