DTCS P0016 To P0133 - Gas
>>
P0122-Throttle Position Sensor #1 Low
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
P0122-Throttle Position Sensor #1 Low: Notes

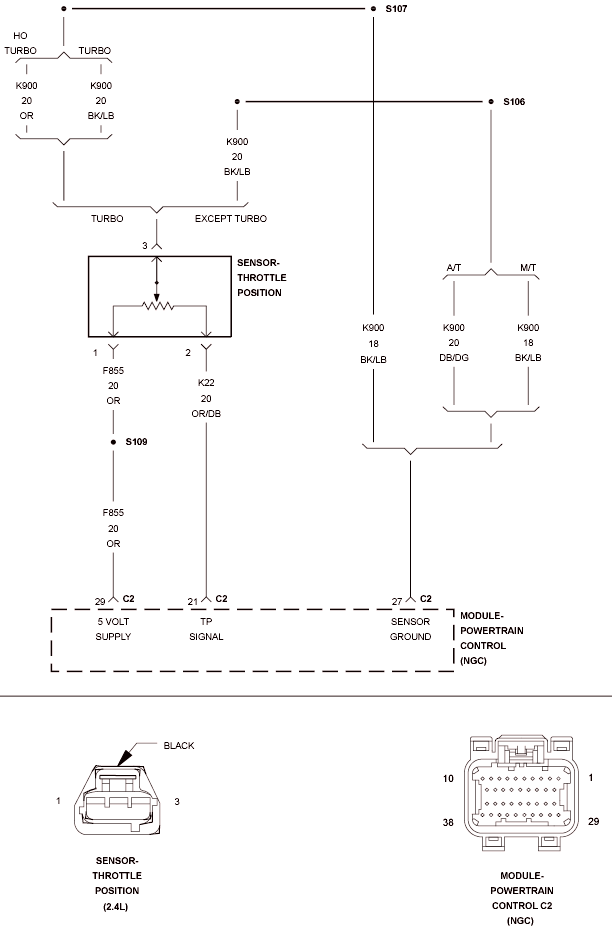

Fig 1: Throttle Position Sensor #1 Circuit
Courtesy of CHRYSLER LLC
