P0513-Invalid Skim Key: Notes

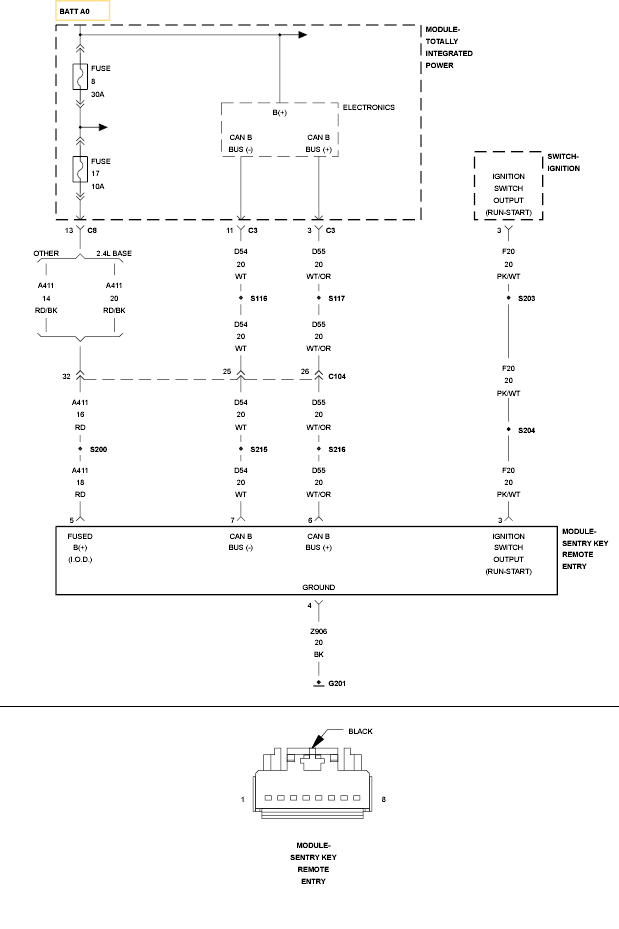

Fig 1: Sentry Key Remote Entry Module Circuit
GC0117286Courtesy of CHRYSLER LLC
