P0622-Generator Field Control Circuit: Notes

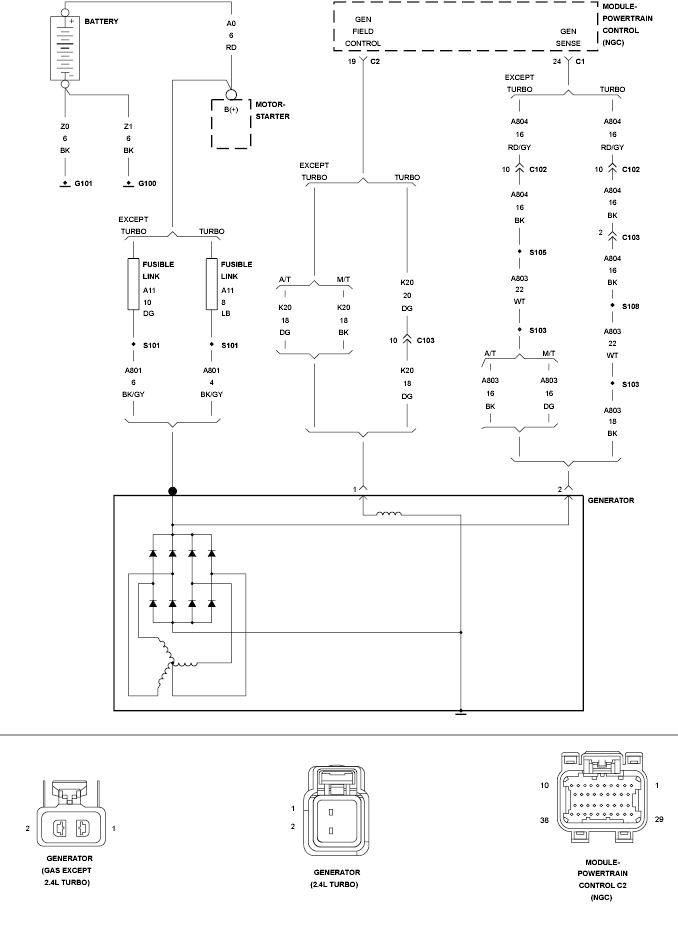

Fig 1: Charging System Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
