Electronic Overhead Module Connector End View (C1)

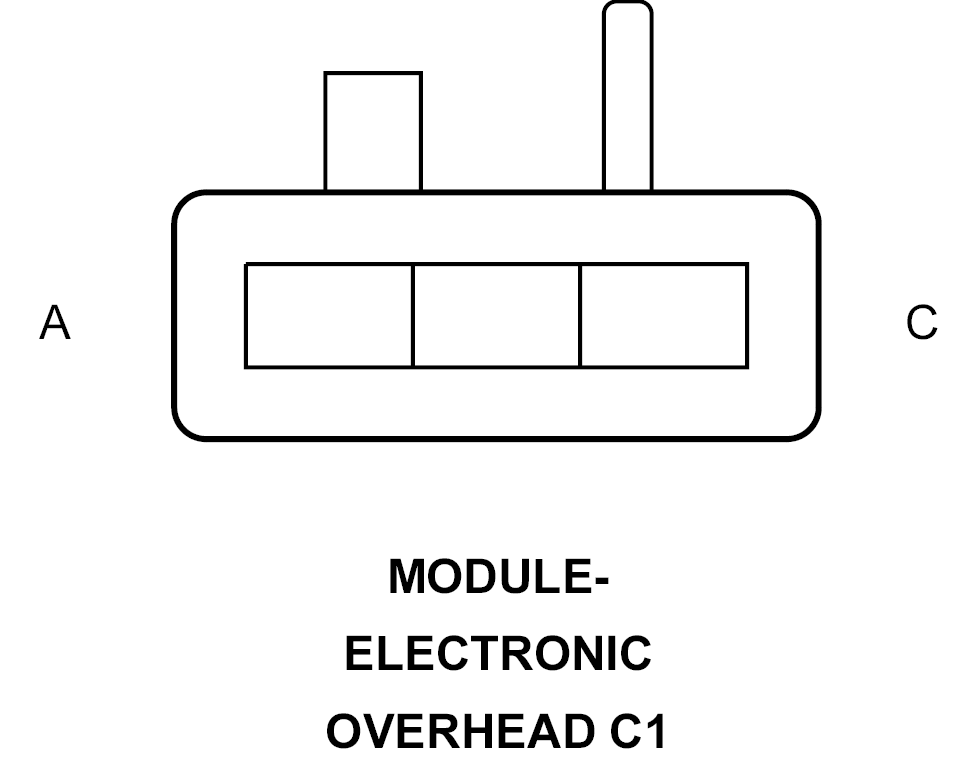

MODULE-ELECTRONIC OVERHEAD C1 - 3-WAY

GPT780200Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A M27 20YL/LB READING/RAIL LAMPS DRIVER
B Z906 20BK GROUND
C M24 20YL/WT COURTESY LAMPS DRIVER
