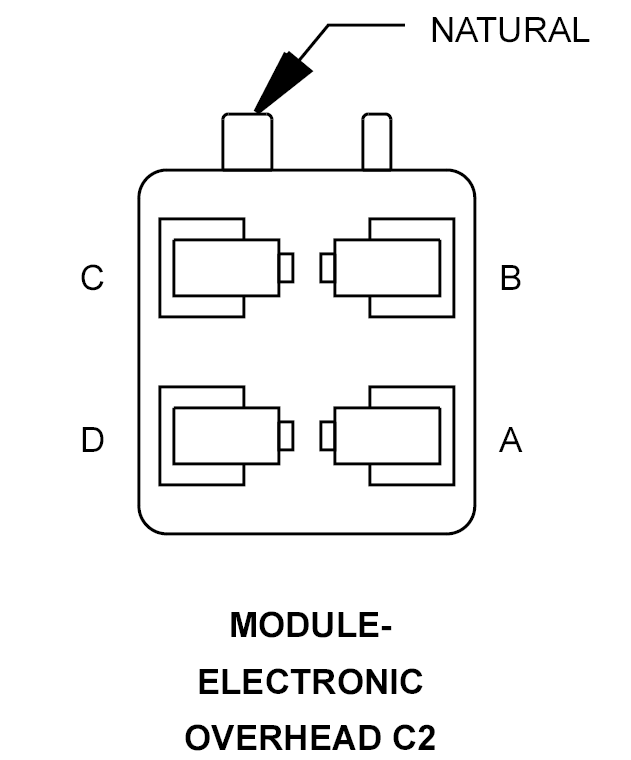

Electronic Overhead Module Connector End View (C2)
MODULE-ELECTRONIC OVERHEAD C2 - NATURAL 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
Q4 20OR/YL |
SUNROOF VENT SWITCH SENSE |
| B |
Q6 20OR/LG |
SUNROOF SWITCH SUPPLY |
| C |
Q3 20OR/TN |
SUNROOF OPEN SWITCH SENSE |
| D |
Q5 20OR/LB |
SUNROOF CLOSE SWITCH SENSE |
