Fuel Pump Module Connector End View

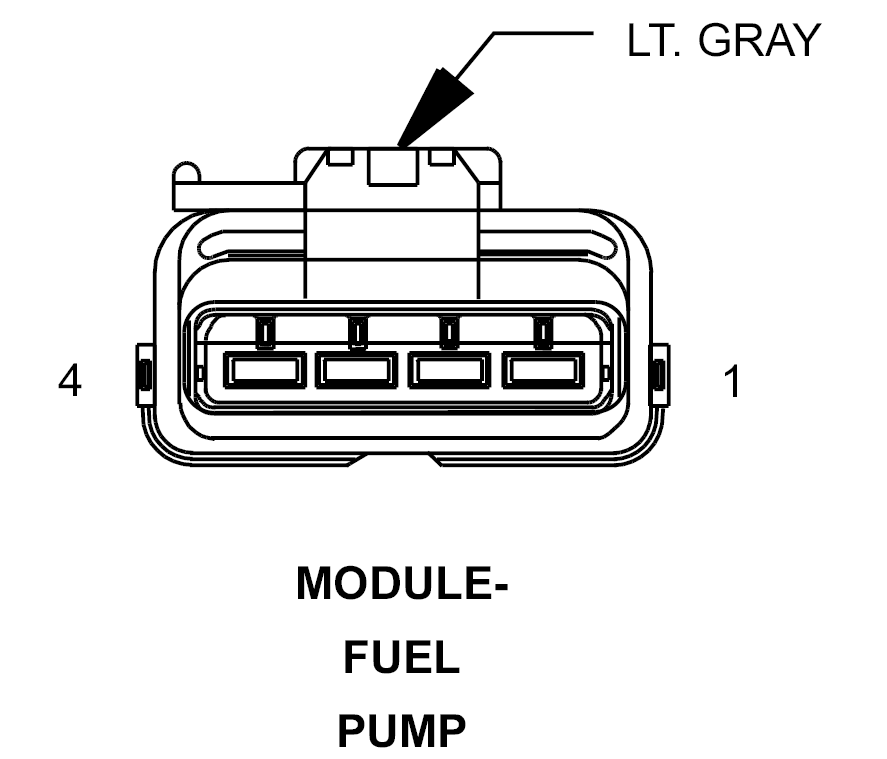

MODULE-FUEL PUMP - LT. GRAY 4-WAY

GPT780204Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z904 16BK GROUND
2 Z904 20BK/LG GROUND
3 N4 20DB FUEL LEVEL SENSOR SIGNAL
4 N1 16DG/WT FUEL PUMP CONTROL OUTPUT
