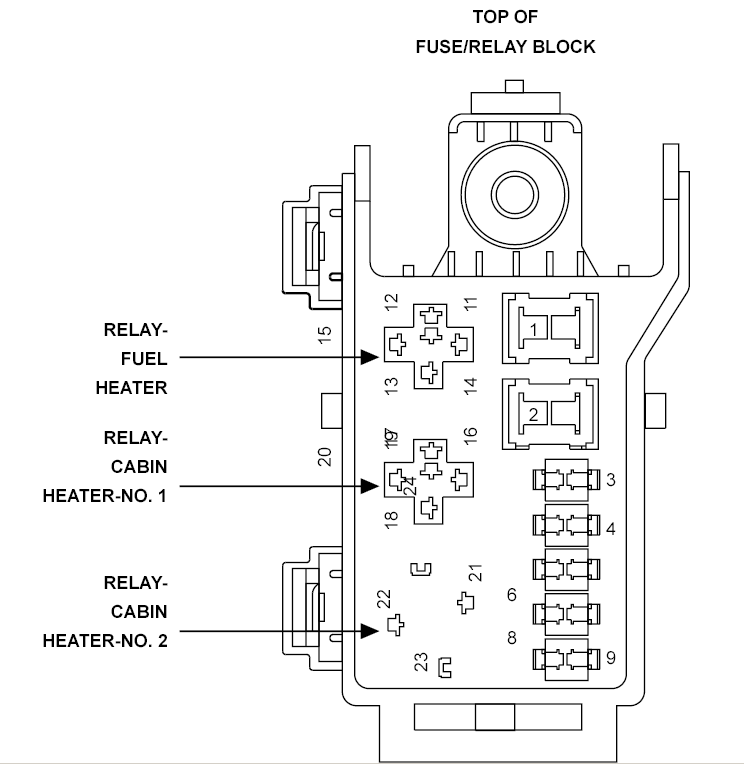

Fuse Block/Relay Block (Diesel) Connector End View

FUSE/RELAY BLOCK (DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A284 8RD/LB	FUSED B(+)
2	A29 8RD/GY	FUSED B(+)
3	A283 12RD/YL	FUSED B(+)
4	A960 14RD	FUSED B(+)
5	-	-
6	A286 10RD/WT	FUSED B(+)
7	-	-
8	A288 12RD/LB	FUSED B(+)
9	-	-
