Input Speed Sensor Connector End View

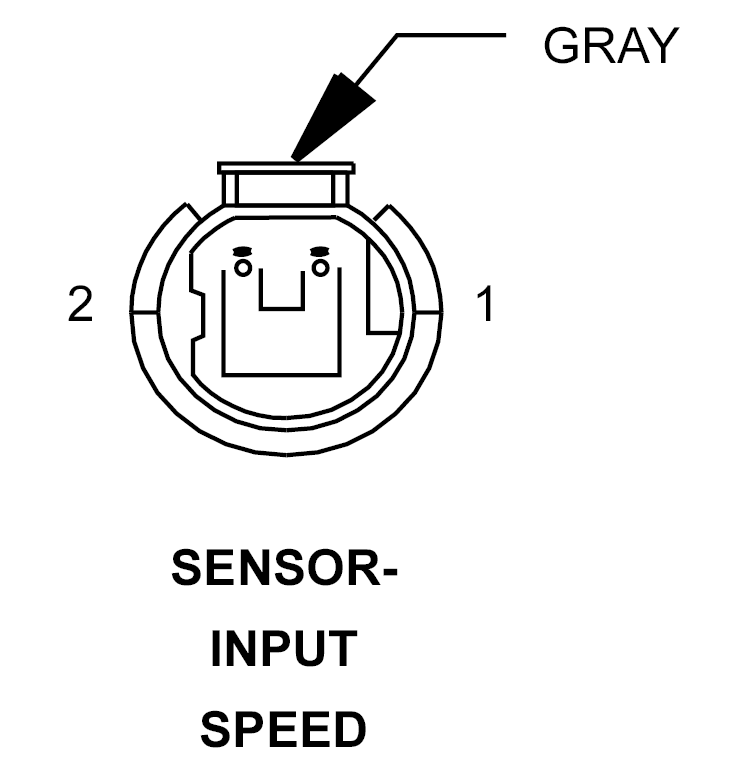

SENSOR-INPUT SPEED - GRAY 2-WAY

GPT780288Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 T13 20DB/BK SPEED SENSOR GROUND
2 T52 20RD/BK INPUT SPEED SENSOR SIGNAL
