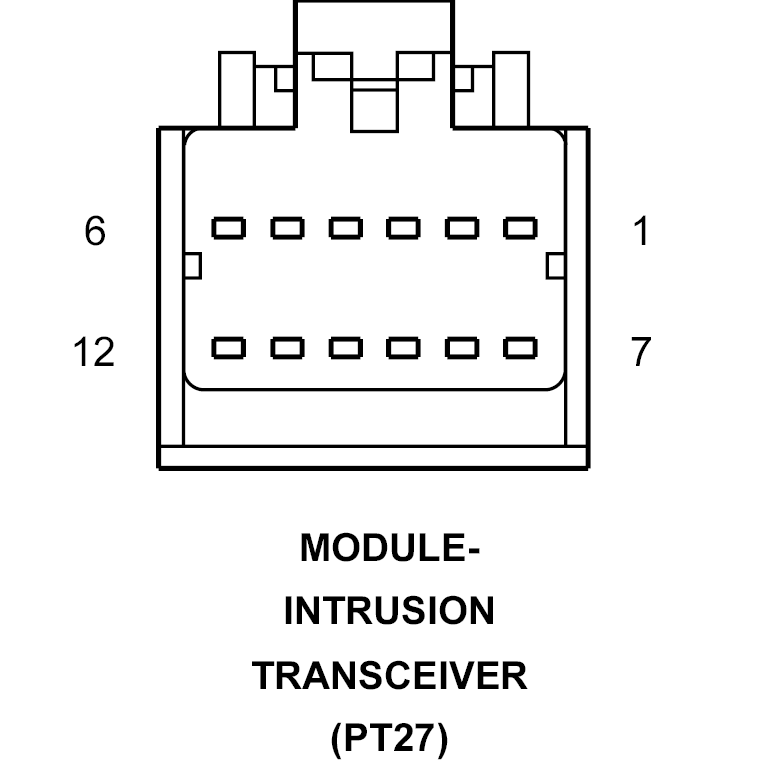

Intrusion Transceiver Module (Convertible) Connector End View
MODULE-INTRUSION TRANSCEIVER - 12-WAY (PT27)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A415 20RD/TN |
FUSED B(+) (I.O.D.) |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
D96 20WT/LB |
SIREN SIGNAL CONTROL |
| 6 |
D55 20WT/OR |
CAN B BUS (+) |
| 7 |
Z902 20BK |
GROUND |
| 8 |
- |
- |
| 9 |
- |
- |
| 10 |
- |
- |
| 11 |
D122 20WT/LG |
LIN BUS |
| 12 |
D54 20WT |
CAN B BUS (-) |
