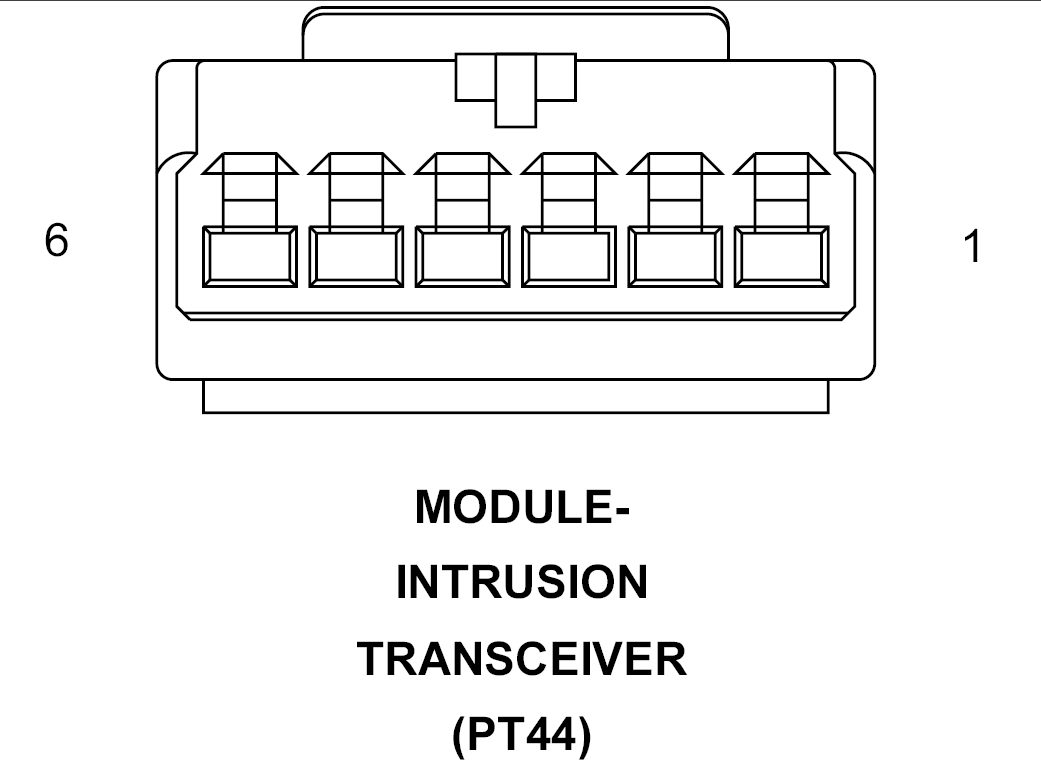

Intrusion Transceiver Module (Hatchback) Connector End View

MODULE-INTRUSION TRANSCEIVER - 6-WAY (PT44)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A415 20RD	FUSED B(+) (I.O.D.)
2	-	-
3	D55 20WT/OR	CAN B BUS (+)
4	D54 20WT	CAN B BUS (-)
5	D96 20WT/LB	SIREN SIGNAL CONTROL
6	Z902 18BK	GROUND (BASE)
6	Z902 20BK	GROUND (EXCEPT BASE)
