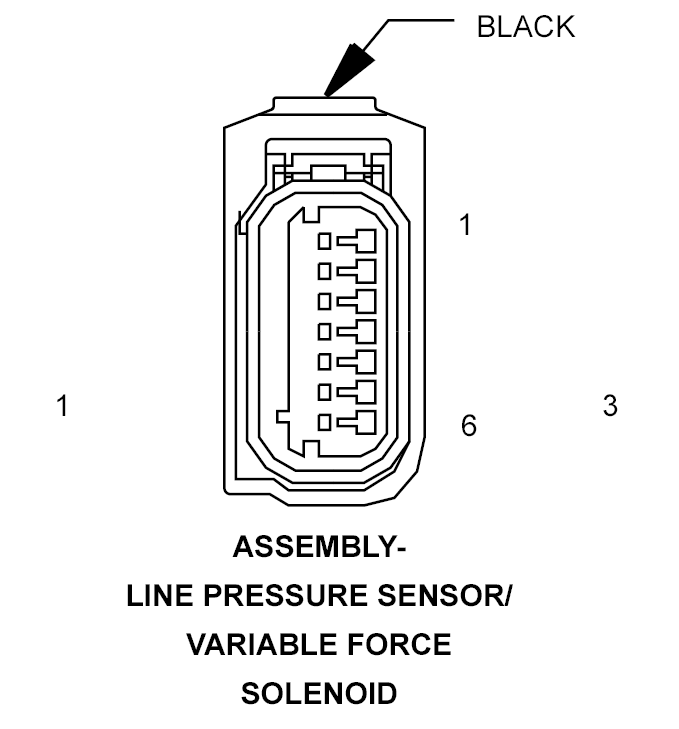

Line Pressure Sensor/Variable Force Solenoid Assembly Connector End View
ASSEMBLY-LINE PRESSURE SENSOR/VARIABLE FORCE SOLENOID - BLACK 6-WAY FEMALE
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
F856 20YL/PK |
5 VOLT SUPPLY |
| 3 |
T38 18YL/BR |
LINE PRESSURE SENSOR SIGNAL |
| 4 |
K900 20DB/DG |
SENSOR GROUND |
| 5 |
T16 18YL/OR |
TRANSMISSION CONTROL OUTPUT |
| 6 |
T118 18DG/WT |
PRESSURE CONTROL SOLENOID CONTROL |
